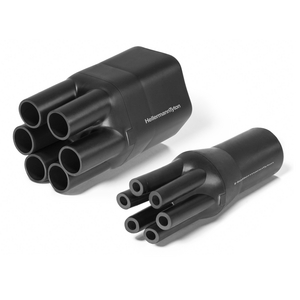

6-Way Outlet Shapes, Breakout Boots
Art.-No. 406-01001 | 601-1-B7-PO-X-BK Details

  • Cable breakout boots for insulating and sealing cable crotch or conduit system
  • Excellent resistance to abrasion and weathering

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
Colour Black (BK)
Local order number 601-1-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 601-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 600 Series, in line, low voltage
Product Group 6-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 601-1-B7
Variant For plug
Flexibility Semi rigid
HW ± 20% 2.3mm
P ± 10% 146.1mm
R ± 10% 22.1mm
S nom 38.1mm
W ± 20 % 2.3mm
∅H max b 27.9mm
∅H min a 38.1mm
∅J max b 5.1mm
∅J min. a 11.9mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660468100
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
