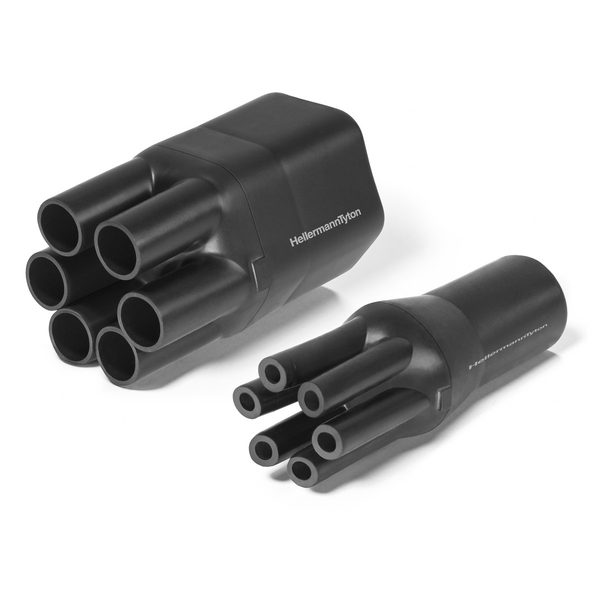

6-Way Outlet Shapes, Breakout Boots
Art.-No. 406-09023 | 609-2-B7-PO-X-BK Details

  • Cable breakout boots for insulating and sealing cable crotch or conduit system
  • Excellent resistance to abrasion and weathering

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
Colour Black (BK)
Local order number 609-2-B8W
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 609-2-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 600 Series, in line, low voltage
Product Group 6-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 609-2-B7
Variant For plug
Flexibility Semi rigid
HW ± 20% 2.5mm
JW ± 20% 1.5mm
P ± 10% 75.0mm
R ± 10% 20.0mm
S nom 25.0mm
Weight/Unit 0.033kg
∅H max b 16.0mm
∅H min a 40.0mm
∅J max b 4.0mm
∅J min. a 12.0mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660666827
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00039
Packaging 1 - Weight (kg) 0.033001kg
Packaging 1 - Width (m) 0.1m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
