Heat Shrink Cable Joint Kit 25-150mm² with Connector Voltage Range 0.6/1 kV
Art.-No. 380-04018 | LVK-C-4x25-150-PO-X-BK Details

  • Universally suitable to connect cables and conductors
  • Immediately ready for use
  • Using a high-quality thermoplastic inner adhesive
  • Good corrosion protection properties with excellent abrasion resistance and weather resistance
  • TCP (thermo chromatic paint) spots indicate the sleeve has been sufficiently heated
  • Resistant to chemical agents and alkaline earths
  • Excellent shrink behavior
  • High UV resistance
  • With mechanical connectors
  • Halogen free
Show more

Request your individual offer now

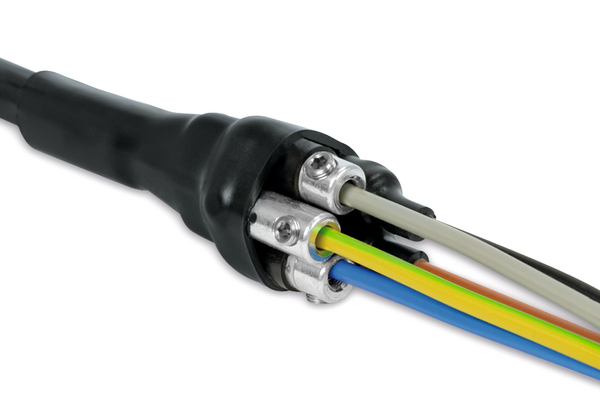

Application LVK-C is a heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors insulated with PVC, PE and XLPE. With mechanical connectors for aluminium or copper cables. Voltage level 0.6/1.0 (1.2) kV.
Colour Black (BK)

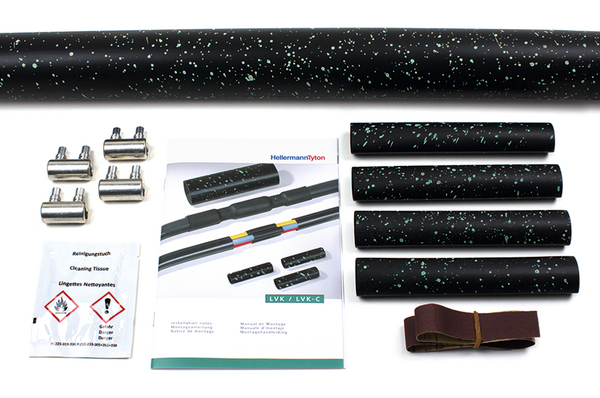

Content Outer sleeve, inner sleeves, mechanical connectors, cleaning cloth, emery cloth, installation instructions
Description LVK-C heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors
Material Polyolefin, cross-linked (PO-X)
No. of Inner sleeves 4
No. of Wires 4
PART DESCRIPTION LVK-C-4x25-150-PO-X-BK
Pack Cont. 1pcs.
Package Content packed in kit
Product Family LVK-C - adhesive lined
Product Group Heat shrinkable straight-through joint with mechanical connectors
Short Description Heat Shrink Cable Joint Kit 25-150mm² with Connector Voltage Range 0.6/1 kV
Shrink Ratio up to 4:1
Type LVK-C-4x25-150
Variant Shrink Cast
Voltage range Voltage level 0.6/1.0 (1.2) kV
With inner glue (Yes/No) Yes
Conductor Size Range mm² 25-150mm²
Height (H) 120mm
Inner Tubing Length (L) 250.0mm
Inner Tubing Recov. ∅ d max. 8.0mm
Inner Tubing Supplied ∅ D min. 33.0mm
Inner Tubing Wall (WT) 2.5mm
Longitudinal Change After Shrinkage -10% max.
Outer Tubing Length (L) 800.0mm
Outer Tubing Recov. ∅ d max. 25.0mm
Outer Tubing Supplied ∅ D min. 105.0mm
Outer Tubing Wall (WT) 3.0mm
Tube Shape Round
Weight/Unit 1.14153kg
Adhesive Hot melt adhesive
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Elongation at break ≥400%(ASTM D2671)
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard No
Minimum Shrink Temperature +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Shelf Life 5 years
Softening Point Adhesive +105 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Voltage Range 0.6/1kV
Volume Resistance 10¹⁴ Ω cm
Volume Resistance test method IEC 93
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026548388
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.81m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01247
Packaging 1 - Weight (kg) 1.141531kg
Packaging 1 - Width (m) 0.14m

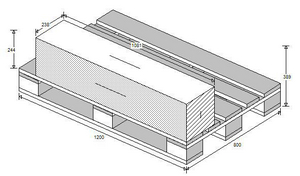

Packaging 3 - Height (m) 0.244m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 5
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0628
Packaging 3 - Weight (kg) 6.467655kg
Packaging 3 - Width (m) 0.238m

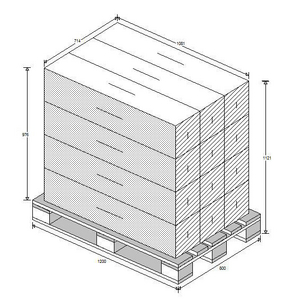

Packaging 4 - Height (m) 1.112m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.068
Packaging 4 - Weight (kg) 98.612kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001169
ETIM 8.0 Key EC001169
ETIM 9.0 Key EC001169
