Heat Shrink Cable Joint Kit 1.5-6mm² with Connector Voltage Range 0.6/1 kV
Art.-No. 380-04013 | LVK-C-5x1.5-6-PO-X-BK |

Universally suitable to connect cables and conductors
Immediately ready for use
Using a high-quality thermoplastic inner adhesive
Good corrosion protection properties with excellent abrasion resistance and weather resistance
TCP (thermo chromatic paint) spots indicate the sleeve has been sufficiently heated
Resistant to chemical agents and alkaline earths
Excellent shrink behavior
High UV resistance
With mechanical connectors
Halogen free

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

1 x LVK-5x1.5-6 380-04005
Heat shrinkable straight-through joint
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register

Application	LVK-C is a heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors insulated with PVC, PE and XLPE. With mechanical connectors for aluminium or copper cables. Voltage level 0.6/1.0 (1.2) kV.
Colour	Black (BK)

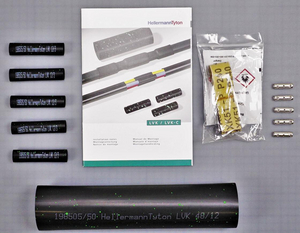

Content	Outer sleeve, inner sleeves, mechanical connectors, cleaning cloth, emery cloth, installation instructions
Description	LVK-C heat shrinkable straight-through joint for universal connecting of unarmoured polymeric cables or conductors
Material	Polyolefin, cross-linked (PO-X)
No. of Inner sleeves	5
No. of Wires	5
PART DESCRIPTION	LVK-C-5x1.5-6-PO-X-BK

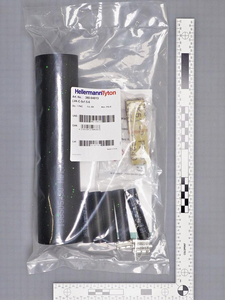

Package Content	1pcs.
Package Content packed in	kit
Product Family	LVK-C - adhesive lined
Product Group	Heat shrinkable straight-through joint with mechanical connectors
Short Description	Heat Shrink Cable Joint Kit 1.5-6mm² with Connector Voltage Range 0.6/1 kV
Shrink Ratio	up to 4:1
Type	LVK-C-5x1.5-6
Variant	Shrink Cast
Voltage range	Voltage level 0.6/1.0 (1.2) kV
Weight/Unit	0.17752kg
With inner glue (Yes/No)	Yes

Conductor Size Range mm²	1.5-6mm²
Height (H)	50mm
Inner Tubing Length (L)	70.0mm
Inner Tubing Recov. ⌀ d max.	3.0mm
Inner Tubing Supplied ⌀ D min.	12.0mm
Inner Tubing Wall (WT)	2.0mm
Longitudinal Change After Shrinkage	-10% max.
Outer Tubing Length (L)	250.0mm
Outer Tubing Recov. ⌀ d max.	12.0mm
Outer Tubing Supplied ⌀ D min.	48.0mm
Outer Tubing Wall (WT)	2.5mm
Tube Shape	Round

Adhesive	Hot melt adhesive
Dielectric Strength	20kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Elongation at break (min.)	400%
Elongation at break test method	ASTM D2671
Halogen-free	Yes
Hazardous Goods	No
Limited Fire Hazard	No
Minimum Shrink Temperature	+120 °C
Operating Temperature	-55 °C to +110 °C
ROHS compliant	Yes
Shelf Life	5 years
Softening Point Adhesive	+105 °C
Specifications
Tensile Strength	14MPa
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
Voltage Range	0.6/1kV
Volume Resistance	10¹⁴ Ω cm
Volume Resistance test method	IEC 93
