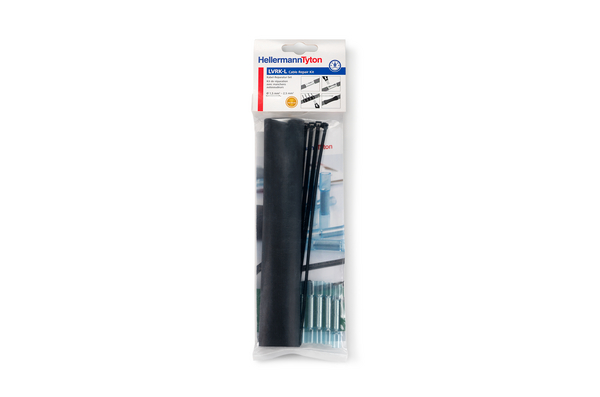

Low Voltage Cable Repair Set
Art.-No. 380-04019 | LVRK-L-24/6-200-PO-X-BK Details

  • Fast, safe and labour-saving repair of cable and wires
  • No need for concealed sockets or wire insertion, with subsequent cost savings

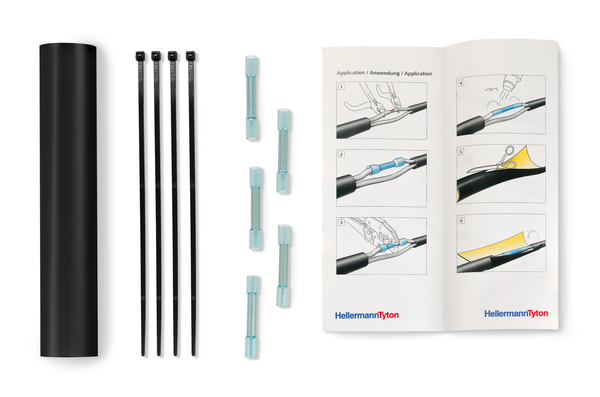

  • Available as a kit for simple and easy handling
  • 1x heat shrinkable tubing, length 200 mm, shrink ratio 4:1, excellent insulation and can be cut for installation
  • 5x crimp connectors with heat shrinkable insulation and adhesive liner
  • 4x T-Series cable ties for strong hold onto bundles
Show more

Request your individual offer now

Application The Cable Repair Kit LVRK-L is a solution for the fast and safe repair of damaged cable and wires in electrical installations. Damaged cable jackets and wires can be repaired safely and durably, saving time and labour
Application Tool H6100
Colour Black (BK)
Description Cable repair kit
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION LVRK-L-24/6-200-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family LVRK-L
Product Group Cable repair kit
Short Description Low Voltage Cable Repair Set
Shrink Ratio 4:1
Type LVRK-L-24/6-200
Variant Shrink Cast
With inner glue (Yes/No) Yes
Conductor Size Range mm² 1.5 - 2.5mm²
Length (L) 200mm
Longitudinal Change After Shrinkage -15% max.
Recov. ∅ d 6.0mm
Supplied ∅ D 24.0mm
Wall (WT) 2.15mm
Weight/Unit 0.036093kg
Dielectric Strength 15kV/mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Minimum Shrink Temperature - °C +110 °C
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Shelf Life 5 years
Softening Point Adhesive +110 °C
Specifications
Voltage Range 0.6/1kV
Country of Origin CN
Customs Number 85472000
GTIN-13 / EAN 4031026623931
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.283m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00024
Packaging 1 - Weight (kg) 0.036093kg
Packaging 1 - Width (m) 0.085m
ETIM 7.0 Key EC001169
ETIM 8.0 Key EC001169
ETIM 9.0 Key EC001169
