29/05/2024

FE
Art.-No. 178-00056 | FE9-PTFE-NA Details

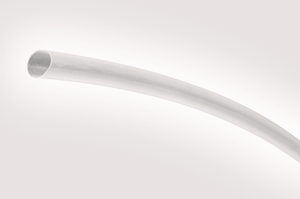

  • Thin walled rubber tubing made of PTFE
  • Transparent or coloured
  • Very high temperature resistance
  • High abrasion resistance
  • Good resistance to aggressive chemicals
  • Availabe on reels
Show more

Request your individual offer now

Application FE is ideal for high temperature applications, when resistance to aggressive fluids is required for example in high performance hose applications. FE tubing is also used to reduce movement due to friction, covering cable or wire.
Colour Natural (NA)
Local order number FE9NL
Material Polytetrafluoroethylene (PTFE)
PART DESCRIPTION FE9-PTFE-NA
Pack Cont. 500m
Package Content packed in Reel
Product Family FE
Product Group Rubber Tubing, PTFE
Type FE9
Supplied ∅ D 0.89mm
Wall (WT) 0.25mm
Weight/Unit 0.03kg
Dielectric Strength 55kV/mm
Dielectric Strength test method IEC 60684 P2
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free No
Hazardous Goods No
Limited Fire Hazard No
Operating Temperature -65 °C to +250 °C, intermittent +350 °C
ROHS compliant Yes
Specifications
Specifications BS-2848 Type 6 250T, DEF STAN 59-15 Type D6
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026297118
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00529
Packaging 1 - Weight (kg) 15.000001kg
Packaging 1 - Width (m) 0.23m
Reel Length 500m
ETIM 7.0 Key EC002254
ETIM 8.0 Key EC002254
ETIM 9.0 Key EC002254
UNSPSC Key 39121721
