Metallic conduits with plastic coating NCS25

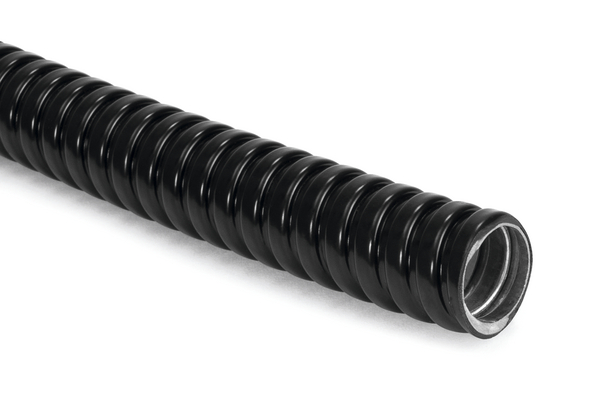

NCS Galvanised Steel Conduit, PA6 Coating, Article number: 166-30803

The HelaGuard NCS galvanised steel conduit with a PA6 coating for higher temperatures and high resistance to acids and solvents.

Features

  • Good resistance to high temperatures
  • Good abrasion resistance
  • High compression, tensile and impact strength
  • Very flexible
  • Good resistance to alkalis and acids
  • Good resistance to chemicals

Certifications & Approvals

Application

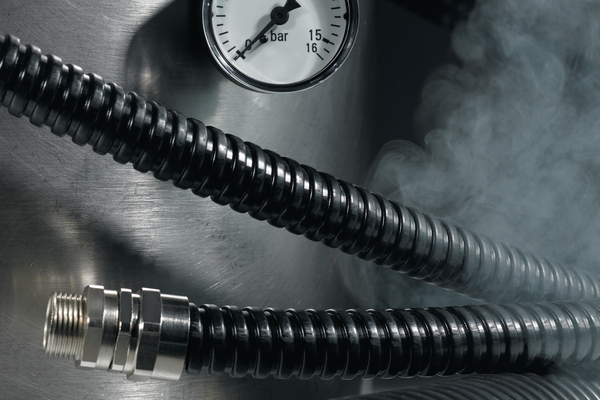

Demanding applications requiring higher temperatures and high resistance to acids and solvents.

NCS Galvanised Steel Conduit, PA6 Coating is suitable for following markets and industries

Colour Black (BK)
Conduit Model Metallic with plastic coating
Description Short (BMEcat) (max. 150 characters) NCS Galvanised Steel Conduit with PA6 Coating black ø25mm reel 25m
Features and Benefits Flexible galvanised steel conduit with PA6 coating.
GLOBAL PART DESCRIPTION NCS25-GS/PA66-BK
Pack Cont. 25m
Package Quantity per Reel
Product Family NCS Galvanised Steel Conduit, PA6 Coating
Product Group Metallic conduits with plastic coating
Diameter (D) 20.9mm
Inside Ø (ID) 20.9mm
Length (L) 25m
Min. Bending Radius (R) 55mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Outside Ø (OD) 26.0mm
Weight 411g/m
Electrical characteristics Not specified
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 444440652410 (with compression fittings)
Halogenfree Yes
Hazardous good No
IP-Rating IP66 (in conjunction with HG fittings)
Material Galvanised Steel (GS), Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +120 °C
Specifications
EAN / GTIN 4031026319889
Packaging 1 - Height (m) 0.179m
Packaging 1 - Length (m) 0.403m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.02907
Packaging 1 - Weight (kg) 10.25kg
Packaging 1 - Width (m) 0.403m
Reel Length 25m
Weight 10.25kg
ETIM 5.0 EC001179
ETIM 6.0 EC001179
