Fitting for metallic conduits with Fixed Internal Thread IP54 ø25mm M25
Art.-No. 166-31302 | PCS25-FF-M25-NPB-ML Details

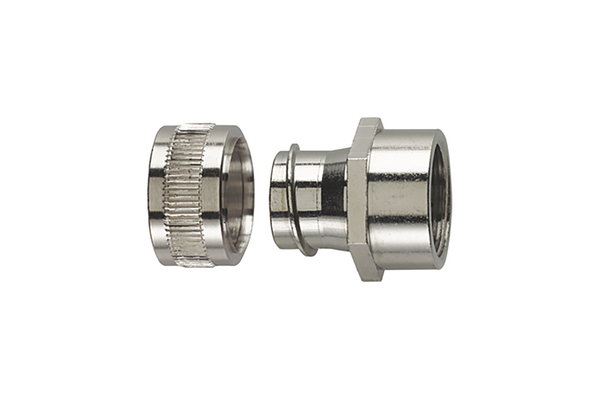

  • Two-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be used to couple two conduits together when used with swivel fitting

Request your individual offer now

Application Fixed internal thread, nickel plated brass.
Colour Metal (ML)
Material Nickel Plated Brass (NPB)
Metallic Fitting Type Standard
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION PCS25-FF-M25-NPB-ML
Product Family PCS-FF Fixed Internal Thread, IP54
Product Group Fittings for metallic conduits with plastic coating
Short Description Fitting for metallic conduits with Fixed Internal Thread IP54 ø25mm M25
Thread type metric
Type of connection Thread
Variant Straight

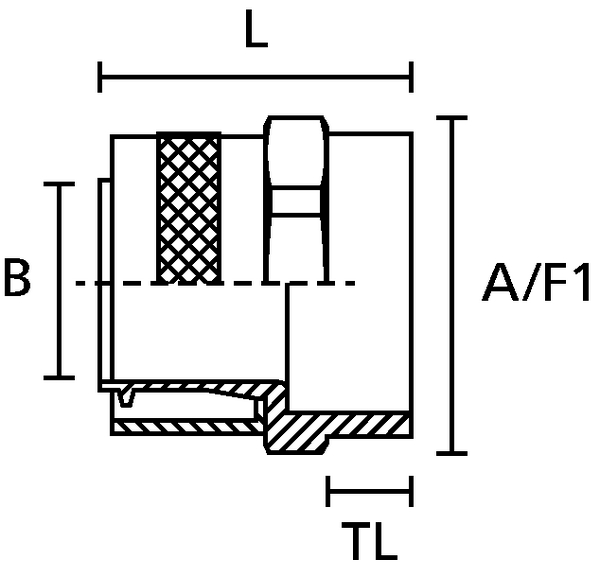

Length (L) 30.0mm
Min. Bore Size (B) 19.1mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Thread Length (TL) 12.0mm
Thread Size M25
Weight/Unit 0.04882kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP54
Operating Temperature -100 °C to +300 °C
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026307428
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0011
Packaging 1 - Weight (kg) 0.488201kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
