Fittings for metallic conduits with plastic coating PCS32-FF-M32

PCS-FF Fixed Internal Thread, IP54, Article number: 166-31303

HelaGuard SC-FF Fixed Internal Thread.

Features

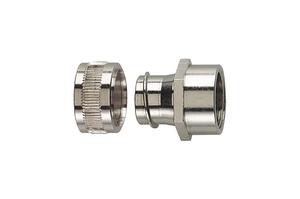

  • Two-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be used to couple two conduits together when used with swivel fitting

Certifications & Approvals

Application

Fixed internal thread, nickel plated brass.

PCS-FF Fixed Internal Thread, IP54 is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits with Fixed Internal Thread IP54 ø32mm M32
Features and Benefits Fixed internal thread, nickel plated brass.
GLOBAL PART DESCRIPTION PCS32-FF-M32-NPB-ML
Metallic Fitting Type Standard
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family PCS-FF Fixed Internal Thread, IP54
Product Group Fittings for metallic conduits with plastic coating
Thread type metric
Type of connection Thread
Variant Straight

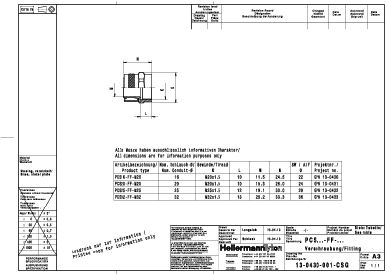

Length (L) 33.3mm
Min. Bore Size (B) 26.2mm
Nominal ∅ 32mm
Nominal ∅ (imperial) 1-1/4"
Thread Length (TL) 13.0mm
Thread Size M32
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP54
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026307435
Packaging 1 - Height (m) 0.042m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00128
Packaging 1 - Weight (kg) 1.8kg
Packaging 1 - Width (m) 0.16m
Weight 1.8kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
