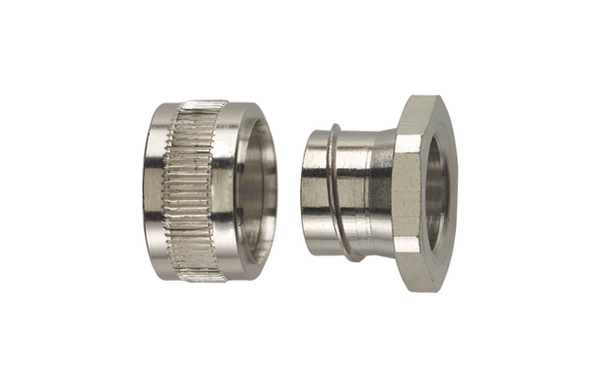

Plain Hole Connector IP54 ø10mm
Art.-No. 166-31200 | PCS10-PC-NPB-ML Details

  • Two part fitting of shell and body without thread
  • Acts as a locking device
  • The body is fitted to the conduit through the opposite side of the entry
  • Provides a smooth entry bush

Request your individual offer now

Application Plain hole connector, nickel plated brass.
Colour Metal (ML)
Material Nickel Plated Brass (NPB)
Metallic Fitting Type Plain hole connector
PART DESCRIPTION PCS10-PC-NPB-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family PCS-PC Plain Hole Connector, IP54
Product Group Fittings for metallic conduits with plastic coating
Short Description Plain Hole Connector IP54 ø10mm
Type PCS10-PC
Type of connection Thread
Variant Straight

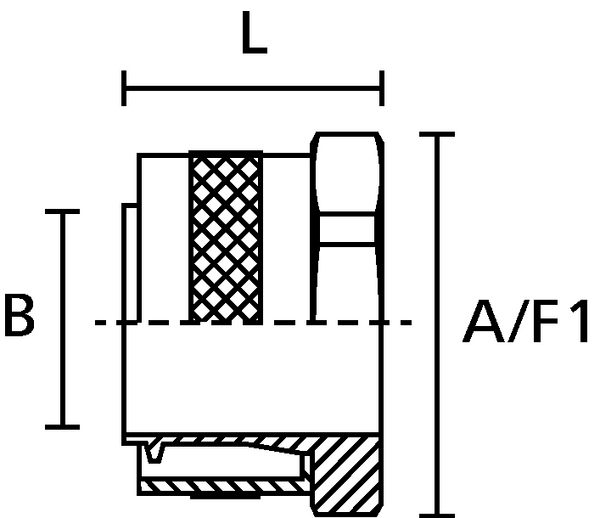

Length (L) 15.0mm
Min. Bore Size (B) 5.6mm
Nominal ∅ 10mm
Nominal ∅ (imperial) 0.38"
Weight/Unit 0.008167kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP54
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026307305
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00077
Packaging 1 - Weight (kg) 0.081671kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
