Fittings for metallic conduits with plastic coating and metallic overbraid PCSB25-SM-M25

PCSB-SM Swivel External Thread, IP54, Article number: 166-33904

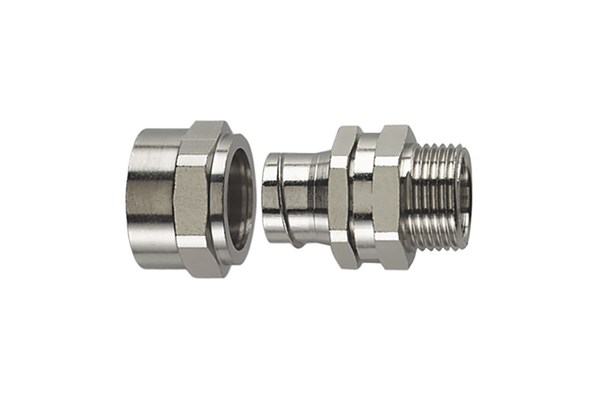

HelaGuard PCSB-SM Swivel External Thread.

Features

  • Two-part fitting of shell and body with external thread
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Swivel external thread, nickel plated brass.

PCSB-SM Swivel External Thread, IP54 is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits with Fixed External Thread IP54 ø25mm M25
Features and Benefits Swivel external thread, nickel plated brass.
GLOBAL PART DESCRIPTION PCSB25-SM-M25-NPB-ML
Metallic Fitting Type Standard
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family PCSB-SM Swivel External Thread, IP54
Product Group Fittings for metallic conduits with plastic coating and metallic overbraid
Thread type metric
Type of connection Thread
Variant Straight

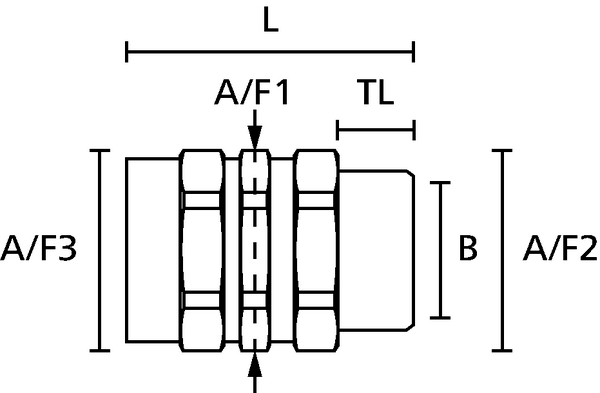

A/F Nut (A/F3) 29mm
A/F Thread (A/F2) 29mm
Length (L) 47.2mm
Min. Bore Size (B) 19.1mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Thread Length (TL) 12.0mm
Thread Size M25
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP54
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026308814
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00144
Packaging 1 - Weight (kg) 1.31kg
Packaging 1 - Width (m) 0.16m
Weight 1.31kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
