12/07/2025

Metallic conduit, nom⌀25mm, metal, 10pcs.
Art.-No. 166-34203 | PCSB25-SMC-M25-NPB/PA6/PS-ML |

Copied

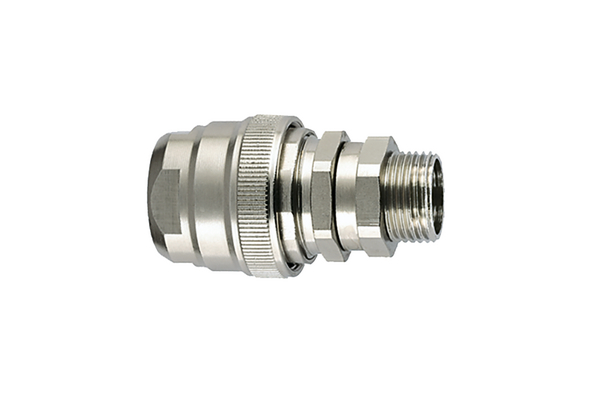

HelaGuard PCSB-SMC Swivel Compression Fitting.
HelaGuard compression fitting, straight with swivel external thread

    This product is not available anymore.
    • Multi-part compression fitting including elastomeric seal
    • Braid is locked between inner and outer compression nuts
    • Provides very good electrical continuity
    • Provides excellent tensile strength
    • Can be used for knockouts or threaded entries as fitting rotates until tightened
    • External thread swivels about main body even after tightening
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Swivel external thread, nickel plated brass with internal circlip.
    Fulfils IP65.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
    Metallic Fitting Type Compression, straight
    PART DESCRIPTION PCSB25-SMC-M25-NPB/PA6/PS-ML
    Package Content 10pcs.
    Package Content packed in Bag
    Product Family PCSB-SMC Swivel Thread Compression Fitting, IP65
    Product Group Fittings for metallic conduits with plastic coating and metallic overbraid
    Short Description Fitting for metallic conduits with Swivel Thread Compression Fitting IP65 ø25mm M25
    Thread type metric
    Type PCSB25-SMC-M25
    Type of connection Thread
    Variant Straight
    Weight/Unit 0.205kg

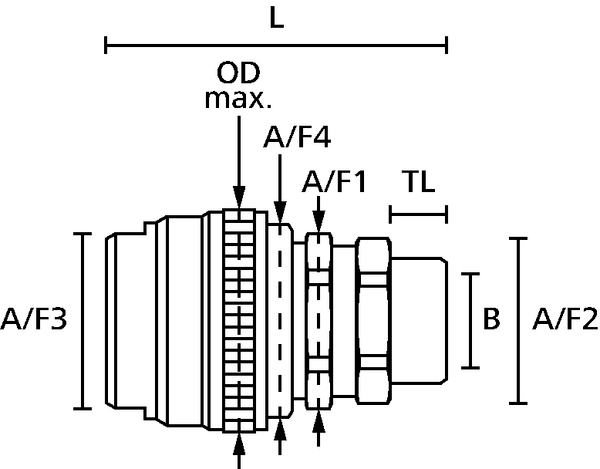

    A/F Inner Nut (A/F4) 36mm
    A/F Nut (A/F3) 34mm
    A/F Thread (A/F2) 33mm
    Length (L) 65.0mm
    Min. Bore Size (B) 19.1mm
    Nominal ⌀ 25mm
    Nominal ⌀ (imperial) 1"
    Outside ⌀ max (OD max.) 41.8mm
    Thread Length (TL) 12.0mm
    Thread Size M25
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026309118
    Packaging 1 - Height (m) 0.041m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.001968m³
    Packaging 1 - Weight (kg) 2.05kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
