Non-Metallic Conduits : HG-DC42

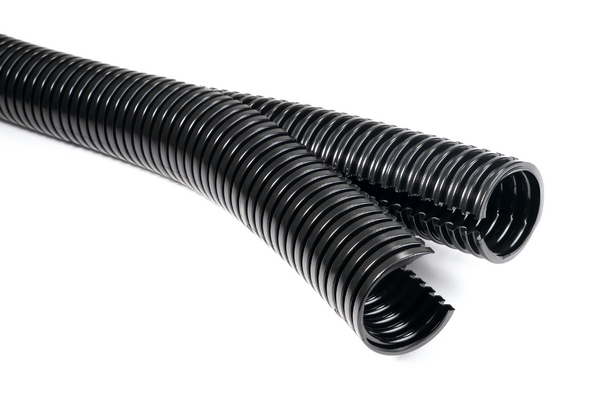

Double slit corrugated conduit PA6 for retrofitting ø 42mm reel 25m, Article number: 166-11806
Features

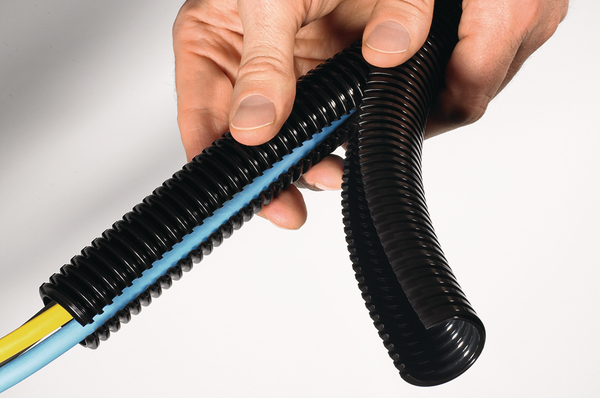

- Can be opened and closed repeatedly

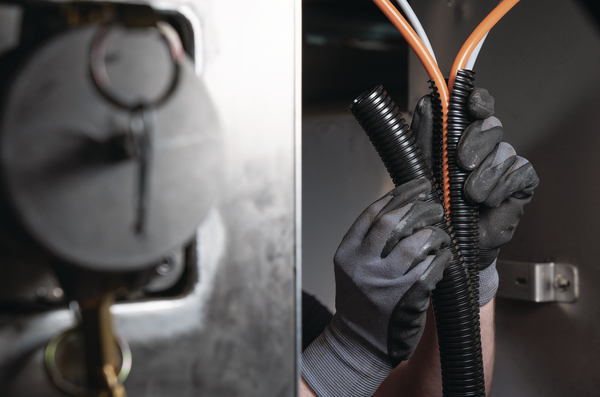

- Cables can be inserted laterally
- Abrasion resistant
- Free of halogen, sulphur and phosphorus
- Self-extinguishing to IEC 61386
- Colour: black
Certifications & Approvals
Application
Control panels, machine building, plant construction and wherever retrofitting is a requirement.
HG-DC Double Slit is suitable for following markets and industries
-
Electronics Industry
-
Electrical Installation
More products in this product group
Non-Metallic Conduits >| Colour | Black (BK) |
| Conduit Model | Plastic corrugated |
| Features and Benefits | Double slit corrugated conduit for retrofitting. |
| Pack Cont. | 25m |
| Package Quantity per | Reel |
| PART DESCRIPTION | HG-DC42-PA6-BK |
| Pitch Type | coarse |
| Product Family | HG-DC Double Slit |
| Product Group | Non-Metallic Conduits |
| Short Description | Double slit corrugated conduit PA6 for retrofitting ø 42mm reel 25m |
|
|
|
| Diameter (D) | 32.3mm |
| Inside Ø (ID) | 32.3mm |
| Length (L) | 25m |
| Min. Bending Radius (R) | 170mm |
| Nominal ∅ | 42mm |
| NW ∅ | 36mm |
| Outside Ø (OD) | 43.5mm |
| Weight | 293g/m |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN61386 Classification | 24244040-310 |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP40 |
| Material | Polyamide 6 (PA6) |
| Operating Temperature - °C | -40 °C to +140 °C, intermittent +160 °C |
| Specifications |
|
| UV-Resistant (Yes/No) | Yes |
|
|
|
| EAN / GTIN | 4031026310831 |
| Packaging 1 - Height (m) | 0.21m |
| Packaging 1 - Length (m) | 0.73m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.11191m³ |
| Packaging 1 - Weight (kg) | 7.325kg |
| Packaging 1 - Width (m) | 0.73m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 25 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 8.425kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.221m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.172m³ |
| Packaging 4 - Weight (kg) | 88.4kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 25m |
| Weight | 7.325kg |
| ETIM 6.0 | EC001175 |
| ETIM 7.0 Key | EC001175 |
| UNSPSC Key | 39131601 |
