Non-Metallic Conduits : HG-DC13

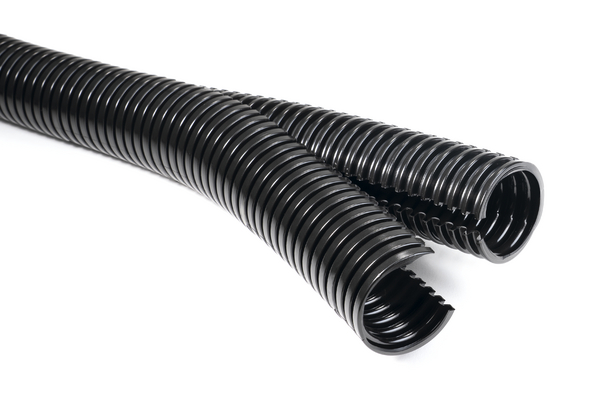

Double slit corrugated conduit PA6 for retrofitting ø13mm reel 50mArticle number: 166-11801
Features

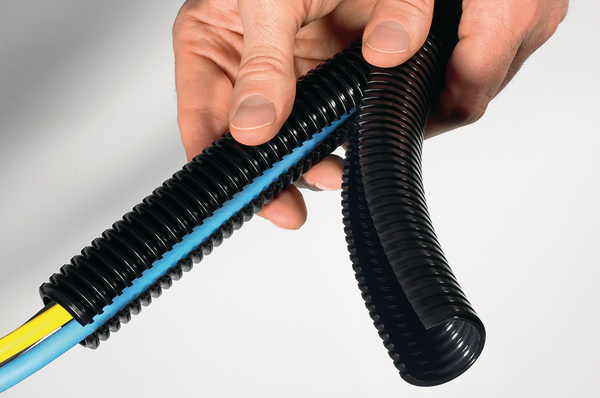

- Can be opened and closed repeatedly
- Cables can be inserted laterally
- Abrasion resistant
- Free of halogen, sulphur and phosphorus
- Self-extinguishing to IEC 61386
- Colour: black
Certifications & Approvals
Application
Control panels, machine building, plant construction and wherever retrofitting is a requirement.
More products in this product group
Non-Metallic Conduits >| Application Tool | CONCUTTER1, CONCUTTER2 |
| Brand Family | HelaGuard |
| Colour | Black (BK) |
| Colour (short) | BK |
| Conduit Model | Plastic corrugated |
| Discontinued Globally | NO |
| EDP Text Short Germany | HG-DC13-PA6-BK-50M |
| Features and Benefits | Double slit corrugated conduit for retrofitting. |
| Features and Benefits 3 | To re-use HelaGuard plastic fittings, simply turn the capnut back to the “on” position and mount it on to the end of the conduit. |
| Local Product Manager | Mark Dunn (Mark.Dunn@hellermanntyton.co.uk) United Kingdom |
| Manufacturer Type | HG-DC13-PA6-BK (50) |
| Manufacturing PM | Anja-Karolin Schulze (Anja-Karolin.Schulze@HellermannTyton.de) Germany |
| Pack Cont. | 50m |
| Package Quantity per | Reel |
| PART DESCRIPTION | HG-DC13-PA6-BK |
| Pitch Type | fine |
| Product Family | HG-DC Double Slit |
| Product Group | Non-Metallic Conduits |
| Product Marketing Manager (EMEA) | Christian Budde (Christian.Budde@HellermannTyton.de) Germany |
| Project Number (GPN) | 09-0283 |
| Short Description | Double slit corrugated conduit PA6 for retrofitting ø13mm reel 50m |
|
|
|
| Diameter (D) | 7.9mm |
| ECl@ss Key | 27140905 |
| Inside Ø (ID) | 7.9mm |
| Length (L) | 50m |
| Min. Bending Radius (R) | 55mm |
| Nominal ∅ | 13mm |
| NW ∅ | 10mm |
| Outside Ø (OD) | 12.9mm |
| US Trade Size | other |
| Weight | 46g/m |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN61386 Classification | 24244040-110 |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP40 |
| Material | Polyamide 6 (PA6) |
| Material | PA6 |
| Material Classification | Polyamide 6 (PA6) |
| Oil resistant (Yes/No) | Yes |
| Operating Temperature - °C | -40 °C to +140 °C, intermittent +160 °C |
| REACH compliant Regu. Art. 33 | YES |
| Specifications |
|
| Country of Origin | DE |
| Customs Number | 39173200 |
| EAN / GTIN | 4031026310787 |
| Global Customs Number | 391732 |
| Label Design | Routing_Protection_Insulation |
| Label E-Number Finland | 11 167 71 |
| Label E-Number Sweden | 14 126 09 |
| Label Type | HT Standard 75x100 |
| Order Unit | metre |
| Package dimensions calculated (LengthxWidthxHeight) | |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.42m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.02117m³ |
| Packaging 1 - Weight (kg) | 2.3kg |
| Packaging 1 - Width (m) | 0.42m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 113.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Packaging Content SKU Unit | metre |
| PL0 Weight without Packaging | 0.046kg |
| PL1 Weight Packaging (Net) | 2.3kg |
| PL4 UNS | 031-90193 |
| PL4 Weight Packaging (Net) | 92.0kg |
| Product Label Dimension 1 | OD: 12.9 mm / |
| Product Label Dimension 2 | ID: 7.9 mm / |
| Reel Length | 50m |
| Status Packaging / Logistics Data | 2020-12-18 |
| Weight | 2.3kg |
| Distrelec order code | 11083208 |
| MITEGRO order codes | 5103690, 10597901 |
| Sold to | Electrical Wholesalers |
| Competitor Match Codes | Adaptaflex, Anaconda, Anamet, Flexa, Kopex, PMA, Reiku, Schlemmer |
| Customer Order Codes (merged) | 00816631078, 01436890, 0504831, 10597901, 11083208, 14401661180100, 1670026, 2496583, 2812018, 3110973, 314111, 5103690, 604750, HLR16611801, P74418 |
| ETIM 6.0 | EC001175 |
| ETIM 7.0 Key | EC001175 |
| shown on website | Germany, France, Finland, Spain, Denmark, Sweden, Poland, Norway, Netherlands, Italy, Austria, Turkey Rep., Singapore (English), Automotive (German), com Internet, China (English), Publication Master, China (Mandarin), Great Britain, Automotive (English), HTData (English), CEE (English) |
| UNSPSC Key | 39131601 |
