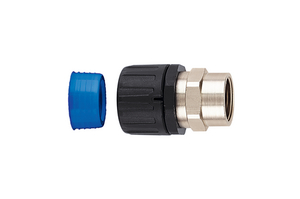

Straight Fitting with Swivel Internal Thread IP68 ø13mm M16
Art.-No. 166-22000 | HGL13-SF-M16-PA66/NPB/TPE-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) Yes
Colour Black (BK)
Local order number HGL13-SF-M16-PA66/NPB/TPE-BK-10ST
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
PART DESCRIPTION HGL13-SF-M16-PA66/NPB/TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family HGL-SF Straight Swivel Internal Thread, IP68
Product Group Fittings with swivel internal thread
Short Description Straight Fitting with Swivel Internal Thread IP68 ø13mm M16
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type metric
Type HGL13-SF-M16
Type of connection Snap-connection
Variant Straight
A/F Thread (A/F2) 22mm
Length (L) 52mm
Lowest inner diameter 11mm
Min. Bore Size (B) 11.0mm
NW ∅ 10mm
Nominal ∅ 13mm
Nominal ∅ (imperial) 0.5"
Outside ∅ max (OD max.) 24mm
Thread Length (TL) 14mm
Thread Size M16
Weight/Unit 0.032kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026303758
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00156
Packaging 1 - Weight (kg) 0.320001kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 100
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 3.50001kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
