Non-Metallic Conduits : HG-HI13

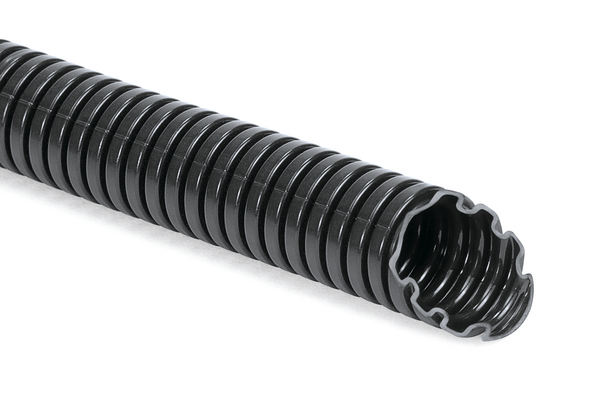

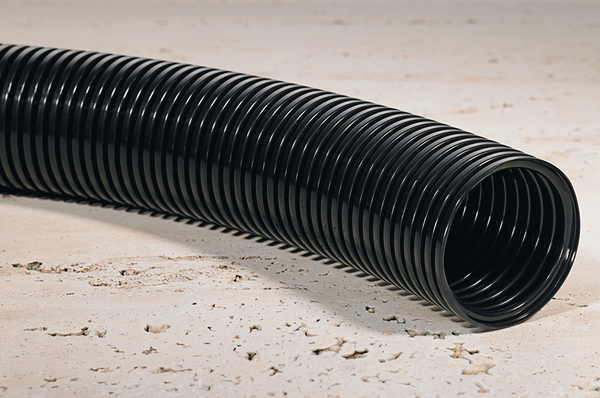

Corrugated flexible conduit PA12 ø13mm reel 50mArticle number: 166-11501
Features
- Excellent fatigue life
- Very flexible
- Recovers form if crushed
- Good mechanical properties at low temperatures
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Self-extinguishing to IEC 61386
- Colour: black
Certifications & Approvals
Application
Robots, rail, machine building, plant construction and wherever continual movement and bending are requirements.
More products in this product group
Non-Metallic Conduits >| Application Tool | CONCUTTER1, CONCUTTER2 |
| Colour | Black (BK) |
| Conduit Model | Plastic corrugated |
| Features and Benefits | Standard weight PA12 corrugated flexible conduit for applications with continual movement and bending. |
| Pack Cont. | 50m |
| Package Quantity per | Reel |
| PART DESCRIPTION | HG-HI13-PA12-BK |
| Pitch Type | fine |
| Product Family | HG-HI PA12 |
| Product Group | Non-Metallic Conduits |
| Short Description | Corrugated flexible conduit PA12 ø13mm reel 50m |
| Type | HG-HI13-PA12-BK-50M |
|
|
|
| Diameter (D) | 9.8mm |
| Inside Ø (ID) | 9.8mm |
| Length (L) | 50m |
| Min. Bending Radius (R) | 25mm |
| Min.Tensile Strength | 150N |
| Nominal ∅ | 13mm |
| Nominal ∅ (imperial) | 0.5" |
| NW ∅ | 10mm |
| Outside Ø (OD) | 13.0mm |
| Weight | 26g/m |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN61386 Classification | 13544066-110 |
| Flammability | self-extinguishing according to EN IEC 61386 |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Material | Polyamide 12 (PA12) |
| Oil resistant (Yes/No) | Yes |
| Operating Temperature - °C | -50 °C to +110 °C |
| Operating Temperature Moving | -50 °C to +110 °C |
| Specifications |
|
| Specifications | IEC 61386 |
|
|
|
| EAN / GTIN | 4031026302645 |
| Packaging 1 - Height (m) | 0.155m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.02122m³ |
| Packaging 1 - Weight (kg) | 1.3kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 60.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 50m |
| Weight | 1.3kg |
| ETIM 6.0 | EC001175 |
| ETIM 7.0 Key | EC001175 |
