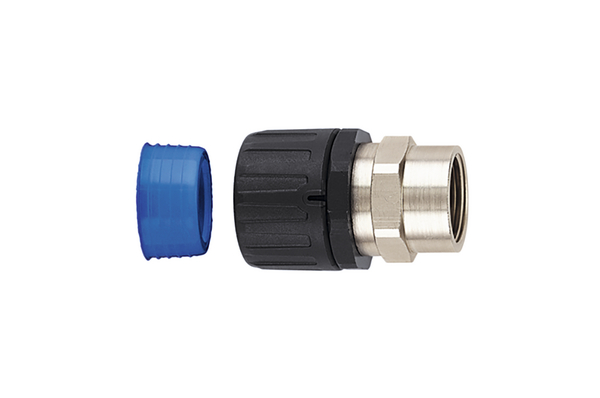

Straight Fitting with Swivel Internal Thread IP68 ø21mm M20
Art.-No. 166-22003 | HGL21-SF-M20-PA66/NPB/TPE-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) Yes
Colour Black (BK)
Local order number HGL21-SF-M20-PA66/NPB/TPE-BK-10ST
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
PART DESCRIPTION HGL21-SF-M20-PA66/NPB/TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family HGL-SF Straight Swivel Internal Thread, IP68
Product Group Fittings with swivel internal thread
Short Description Straight Fitting with Swivel Internal Thread IP68 ø21mm M20
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type metric
Type HGL21-SF-M20
Type of connection Snap-connection
Variant Straight
A/F Thread (A/F2) 24mm
Length (L) 57mm
Lowest inner diameter 14.5mm
Min. Bore Size (B) 14.5mm
NW ∅ 17mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 0.81"
Outside ∅ max (OD max.) 32mm
Thread Length (TL) 14mm
Thread Size M20
Weight/Unit 0.043156kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026303789
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00234
Packaging 1 - Weight (kg) 0.431561kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
