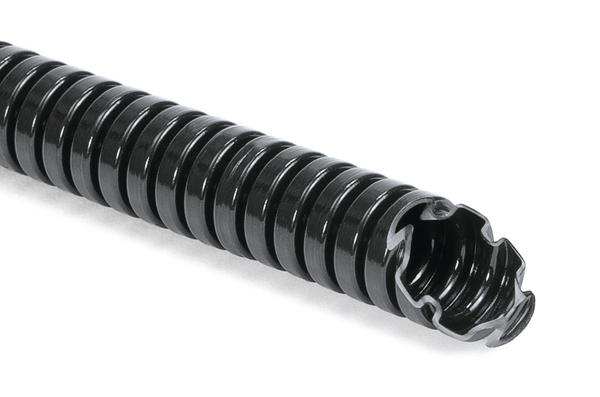

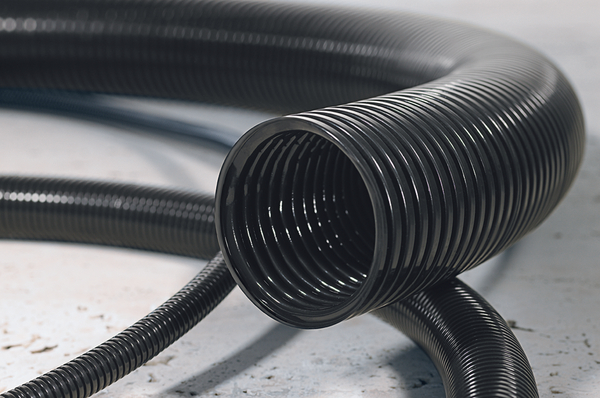

Flame-retardant standard weight corrugated flexible conduit PA6 ø21mm reel 50m
Art.-No. 166-11403 | HG-FR21-PA6FR-BK Details

  • Highly flame retardant (UL94 V0)
  • Low smoke, low toxicity
  • Very flexible and high fatigue life
  • High impact strength, recovers if crushed
  • Abrasion resistant
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Colour: black
Show more

Request your individual offer now

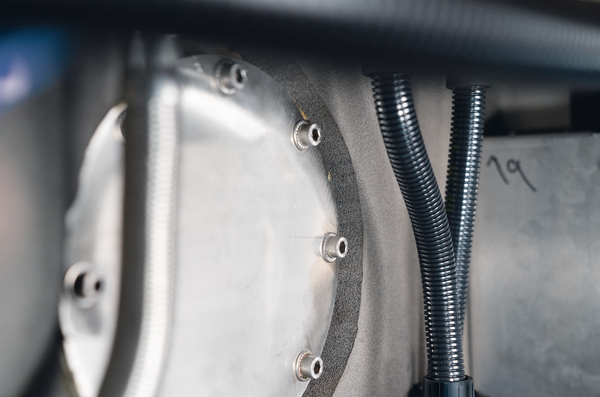

Application Flame-retardant standard weight corrugated flexible conduit is used where high fire-protection is required, including railway vehicles, tunnels and underground stations as well as public buildings.
Colour Black (BK)
Key product features flame retardant
Local order number HG-FR21-PA6-BK-50M
Material Polyamide 6, flame retardant (PA6FR)
PART DESCRIPTION HG-FR21-PA6FR-BK
Pack Cont. 50m
Package Content packed in Reel
Pitch Type fine
Product Family HG-FR PA6 Flame Retardant
Product Group Non-Metallic Conduits
Short Description Flame-retardant standard weight corrugated flexible conduit PA6 ø21mm reel 50m
Type HG-FR21
Bending Radius min. (R) 45mm
Diameter (D) 16.7mm
Inside Ø (ID) 16.7mm
Length (L) 50m
Min.Tensile Strength 400N
NW ∅ 17mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 0.81"
Outside Ø (OD) 21.2mm
Weight 60g/m
Weight/Unit 0.0612kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 24244066-210
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Oil resistant Yes
Operating Temperature -40 °C to +120 °C
Operating Temperature Moving -20 °C to +100 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1696, BS EN 61386-23, csa-C22.2 No.227.3, EN 45545-2
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E325250
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026302591
Packaging 1 - Height (m) 0.22m
Packaging 1 - Length (m) 0.48m
Packaging 1 - Qty 50
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.05069
Packaging 1 - Weight (kg) 3.06kg
Packaging 1 - Width (m) 0.48m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 65.4kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 86.4kg
Packaging 4 - Width (m) 0.8m
Reel Length 50m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
