Fittings with swivel internal thread : HGL21-90F-M20

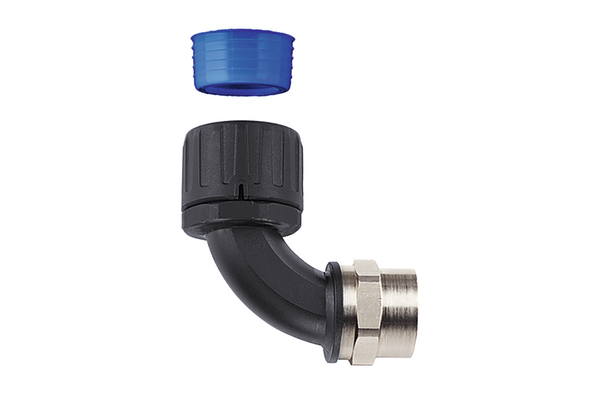

Elbow Fitting 90° with Swivel Internal Thread IP68 ø21mm M20, Article number: 166-23203

HelaGuard HGL-90F 90° Elbow Swivel Internal Thread with conduit seal, IP68.

Features

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Certifications & Approvals

Application

90° elbow swivel brass internal thread with conduit seal and washer.
Fulfils IP66, IP67, IP68 and IP69k.

HGL-90F 90° Elbow Swivel Internal Thread, IP68 is suitable for following markets and industries

Brass Thread (Y/N) Yes
Colour Black (BK)
Features and Benefits 90° elbow swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION HGL21-90F-M20-PA66/NPB/TPE-BK
Product Family HGL-90F 90° Elbow Swivel Internal Thread, IP68
Product Group Fittings with swivel internal thread
Short Description Elbow Fitting 90° with Swivel Internal Thread IP68 ø21mm M20
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type metric
Type of connection Snap-connection
Variant 90°-elbow
A/F Thread (A/F2) 24mm
Length (L) 68mm
Lowest inner diameter 14mm
Min. Bore Size (B) 14.0mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 13/16"
NW ∅ 17mm
Outside ∅ max (OD max.) 32mm
Thread Length (TL) 14mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP66, IP67, IP68, IP69k
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications UL-Recognized
EAN / GTIN 4031026304854
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00154
Packaging 1 - Weight (kg) 0.57kg
Packaging 1 - Width (m) 0.16m
Weight 0.57kg
ETIM 6.0 EC001176
ETIM 7.0 Key EC001176
