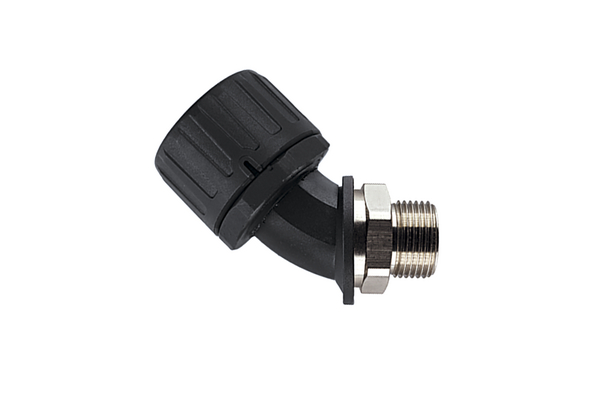

Elbow Fitting 45° with Swivel External Thread IP66 ø21mm PG13
Art.-No. 166-23708 | HG21-45M-PG13-PA66/NPB-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application 45° elbow swivel brass external thread.
Brass Thread (Y/N) Yes
Colour Black (BK)
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HG21-45M-PG13-PA66/NPB-BK
Product Family HG-45M 45° Elbow Swivel External Thread, IP66
Product Group Fittings with swivel external thread
Short Description Elbow Fitting 45° with Swivel External Thread IP66 ø21mm PG13
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type not applicable
Type of connection Snap-connection
Variant 45°-elbow

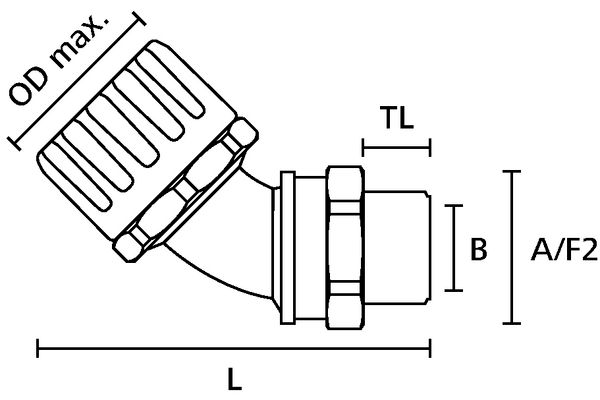

A/F Thread (A/F2) 24mm
Angle 45°
Length (L) 74mm
Lowest inner diameter 14mm
Min. Bore Size (B) 14.0mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 0.81"
NW ∅ 17mm
Outside ∅ max (OD max.) 32mm
Thread Length (TL) 10mm
Thread Size PG13.5
Weight/Unit 0.0374kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026305226
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00154
Packaging 1 - Weight (kg) 0.374001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
