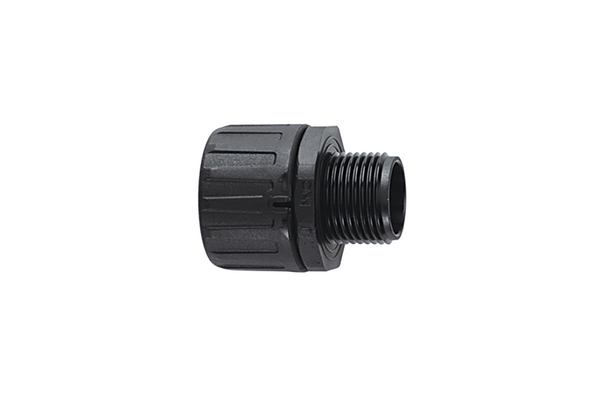

Straight fitting with external thread IP66 ø21mm PG21
Art.-No. 166-21040
| HG21-S-PG21-PA66-BK
|
Details
- One piece, fast fit
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Metric threads supplied with locknuts
Request your individual offer now
Request quote
More products in this product group:
| Application | Straight external thread. |
| Brass Thread (Y/N) | No |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | HG21-S-PG21-PA66-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Product Family | HG-S Straight, IP66 |
| Product Group | Fittings with fixed external thread |
| Short Description | Straight fitting with external thread IP66 ø21mm PG21 |
| Strain Relief Function (Y/N) | No |
| Swivel Thread (Y/N) | No |
| Thread type | not applicable |
| Type | HG21-S-PG21 |
| Type of connection | Snap-connection |
| Variant | Straight |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | csa-C22.2 No.227.3 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E325250 |
