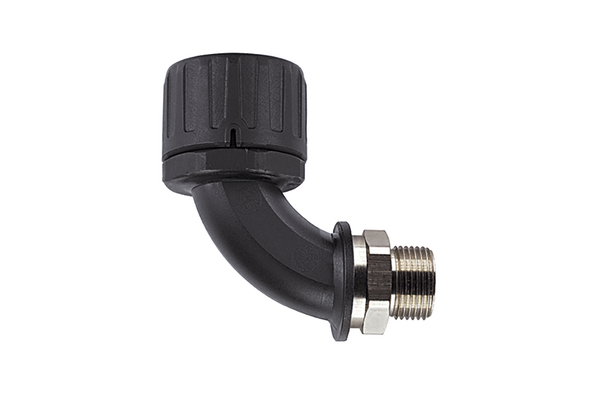

Fitting for corrugated tubing, nom⌀21mm, PG13.5, 90°, black, 10pcs.
Art.-No. 166-22512 | HG21-90M-PG13-PA66/NPB-BK |

Copied
HelaGuard HG-90M 90° Elbow Swivel External Thread, IP66.
HelaGuard fitting, 90° with swivel internal thread

    • One piece, fast fit
    • High pull-off strength
    • Highly resistant to solvents and oils
    • Free of halogen, sulphur and phosphorus
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application 90° elbow swivel brass external thread.
    Brass Thread (Y/N) Yes
    Colour Black (BK)
    Local order number HG16-90M-PG13-PA66/NPB-BK-10ST
    Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
    PART DESCRIPTION HG21-90M-PG13-PA66/NPB-BK
    Package Content 10pcs.
    Package Content packed in Bag
    Product Family HG-90M 90° Elbow Swivel External Thread, IP66
    Product Group Fittings with swivel external thread
    Short Description Elbow Fitting 90° with Swivel External Thread IP66 ø21mm PG13
    Strain Relief Function (Y/N) No
    Swivel Thread (Y/N) Yes
    Thread type not applicable
    Type HG21-90M-PG13
    Type of connection Snap-connection
    Variant 90°-elbow
    Weight/Unit 0.0394kg

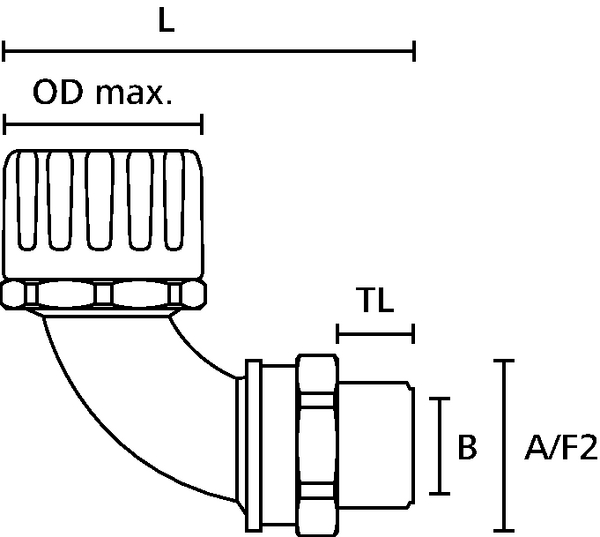

    A/F Thread (A/F2) 24mm
    Angle 90
    Length (L) 64mm
    Lowest inner diameter 14mm
    Min. Bore Size (B) 14.0mm
    NW ⌀ 17mm
    Nominal ⌀ 21mm
    Nominal ⌀ (imperial) 0.81"
    Outside ⌀ max (OD max.) 32mm
    Thread Length (TL) 10mm
    Thread Size PG13.5
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026304267
    Packaging 1 - Height (m) 0.032m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.001536m³
    Packaging 1 - Weight (kg) 0.394001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
