HelaGuard Accessories PACC21

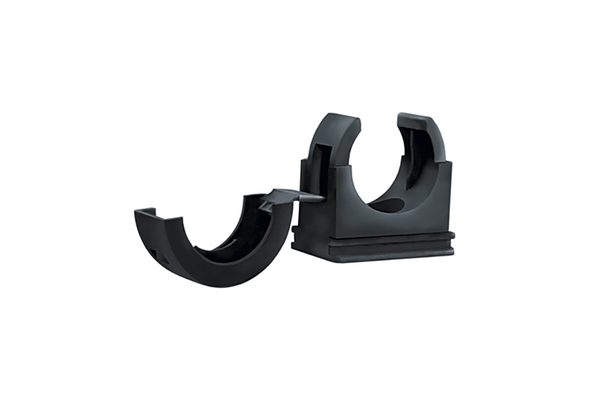

PACC Clip for Corrugated Conduits, Article number: 166-25702

Features

  • Easy and quick assembly with non-metallic conduits
  • Lid is integrated
  • Hole for fastening with screw
  • Inner rib prevents conduit from slipping
  • Can be used in C-shaped DIN rails

Certifications & Approvals

PACC Clip for Corrugated Conduits is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Clip for Corrugated Conduits black ø21mm
Fixation Method screw-hole
GLOBAL PART DESCRIPTION PACC21-PA66-BK
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family PACC Clip for Corrugated Conduits

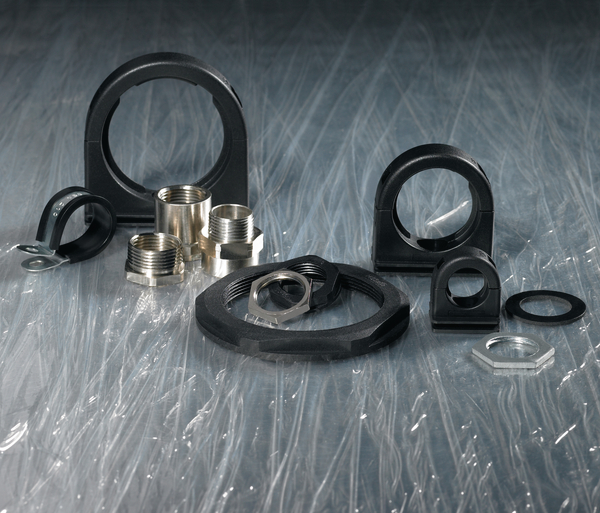

Product Group HelaGuard Accessories
Type PACC21-PA66-BK-50M

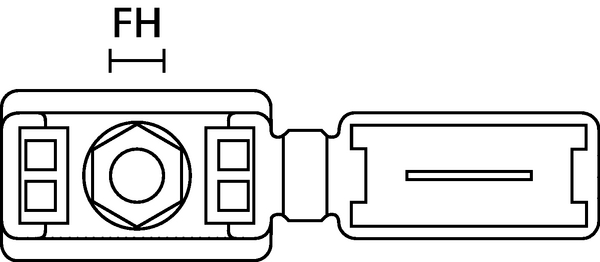

for Hole ∅ (FH) M6

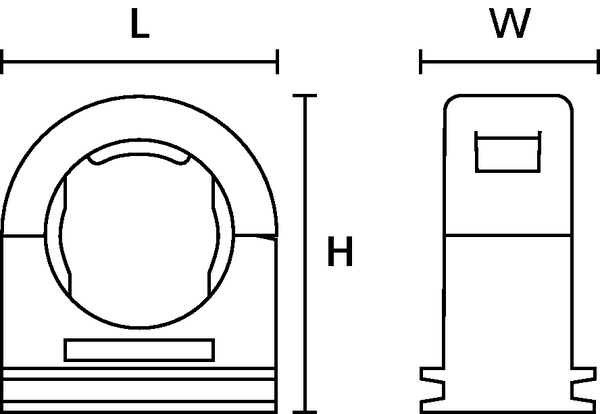

Height (H) 36mm
Height (H2) 20mm
Length (L) 32mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 13/16"
Width (W) 15mm
Width (W2) 20mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Min. Extraction Force (N) 600N
Minimum Pull trough Strength (N) 200N
Operating Temperature - °C -50 °C to +135 °C
Specifications
EAN / GTIN 4031026305806
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00192
Packaging 1 - Weight (kg) 0.29kg
Packaging 1 - Width (m) 0.16m
Weight 0.29kg
ETIM 5.0 EC001171
ETIM 6.0 EC001171
