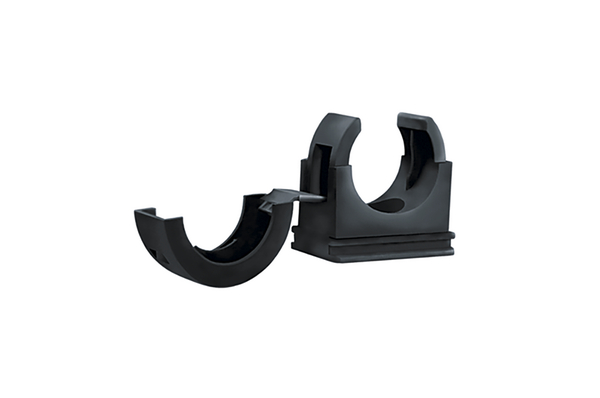

Fitting for corrugated tubing, nom⌀34mm, black, 10pcs.
Art.-No. 166-25704 | PACC34-PA66-BK

Copied
  • Easy and quick assembly with non-metallic conduits
  • Lid is integrated
  • Hole for fastening with screw
  • Inner rib prevents conduit from slipping
  • Can be used in C-shaped DIN rails

Request your individual offer now

Application Corrugated tubes can be securely fastened with the PACC clamp.
Colour Black (BK)
Fixation Method screw-hole
Local order number PACC34-PA66-BK-25M
Material Polyamide 6.6 (PA66)
PART DESCRIPTION PACC34-PA66-BK
Package Content 10pcs.
Package Content packed in Bag
Product Family PACC Clip for Corrugated Conduits
Product Group HelaGuard Accessories
Short Description Clip for Corrugated Conduits black ø34mm
Type PACC34
Weight/Unit 0.012kg
Height (H) 51mm
Height (H2) 27mm
Length (L) 48mm
Nominal ⌀ 34mm
Nominal ⌀ (imperial) 1.31"
Width (W) 15mm
Width (W2) 20mm
for Hole ⌀ (FH) M6
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Min. Extraction Force (N) 800N
Minimum Pull trough Strength (N) 500N
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026305820
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00208
Packaging 1 - Weight (kg) 0.120001kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC000368
ETIM 8.0 Key EC000368
ETIM 9.0 Key EC000368
