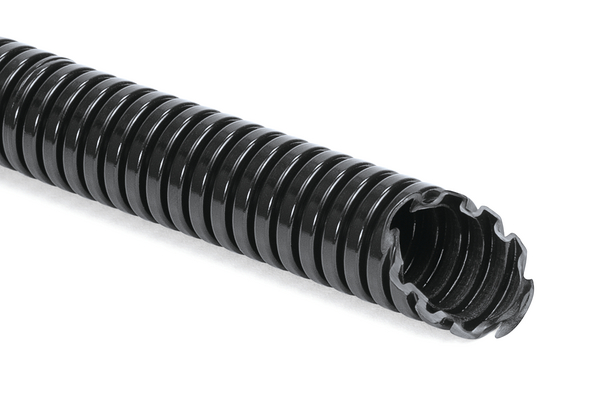

Heavy weight corrugated flexible conduit PA6 ø34mm reel 25m
Art.-No. 166-11306 | HG-HW34-PA6-BK Details

  • Heavy weight
  • High mechanical strength
  • Very abrasion resistant
  • High impact strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Self-extinguishing according to UL94 V2
  • Colour: black
Show more

Request your individual offer now

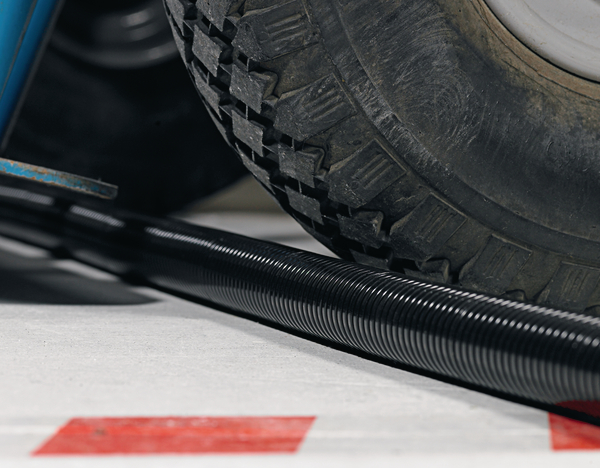

Application Heavy-duty machine buidling, plant construction, and public buildings, wherever high mechanical strength is required.
Application Tool CONCUTTER1, CONCUTTER2
Colour Black (BK)
Conduit Model Plastic corrugated
Local order number HG-HW34-PA6-BK-25M
Material Polyamide 6 (PA6)
PART DESCRIPTION HG-HW34-PA6-BK
Pack Cont. 25m
Package Content packed in Reel
Pitch Type coarse
Product Family HG-HW PA6 Heavy Weight
Product Group Non-Metallic Conduits
Short Description Heavy weight corrugated flexible conduit PA6 ø34mm reel 25m
Type HG-HW34
Bending Radius min. (R) 70mm
Diameter (D) 26.9mm
Inside Ø (ID) 26.9mm
Length (L) 25m
NW ∅ 29mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1.31"
Outside Ø (OD) 34.5mm
Weight 170g/m
Weight/Unit 0.177846kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 24244066-310
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Oil resistant Yes
Operating Temperature -40 °C to +120 °C
ROHS compliant Yes
Specifications
Specifications csa-C22.2 No.227.3, IEC 61386
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E325250
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026302539
Packaging 1 - Height (m) 0.27m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.05964
Packaging 1 - Weight (kg) 4.446kg
Packaging 1 - Width (m) 0.47m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 400
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 75.3384kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 96.338kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
