Fittings with swivel flange : HGL34-45FL

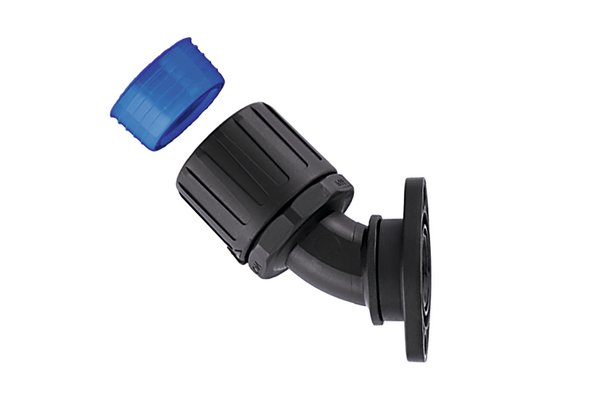

Elbow Fitting 45° IP68 with Swivel Flange ø34mm, Article number: 166-24203

HelaGuard HGL-45FL 45° Elbow Swivel Flange, IP68.

Features

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Certifications & Approvals

Application

45° elbow swivel flange with conduit seal and washer.
Fulfils IP66, IP67, IP68 and IP69k.

HGL-45FL 45° Elbow Swivel Flange, IP68 is suitable for following markets and industries

Brass Thread (Y/N) No
Colour Black (BK)
Features and Benefits 45° elbow swivel flange with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION HGL34-45FL-PA66/TPE-BK
Product Family HGL-45FL 45° Elbow Swivel Flange, IP68
Product Group Fittings with swivel flange
Short Description Elbow Fitting 45° IP68 with Swivel Flange ø34mm
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Thread type not applicable
Type of connection Snap-connection
Variant 45°-elbow
Fixing Hole Centres (F) 36mm
Fixing Hole Centres (F2) 54mm
for Hole ∅ (FH) 6.2 mm
Length (L) 84mm
Lowest inner diameter 24.5mm
Min. Bore Size (B) 24.5mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1-5/16"
NW ∅ 29mm
Outside ∅ max (OD max.) 51mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP66, IP67, IP68, IP69k
Material Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications UL-Recognized
EAN / GTIN 4031026305530
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00677
Packaging 1 - Weight (kg) 0.594kg
Packaging 1 - Width (m) 0.18m
Weight 0.594kg
ETIM 6.0 EC001176
ETIM 7.0 Key EC001176
