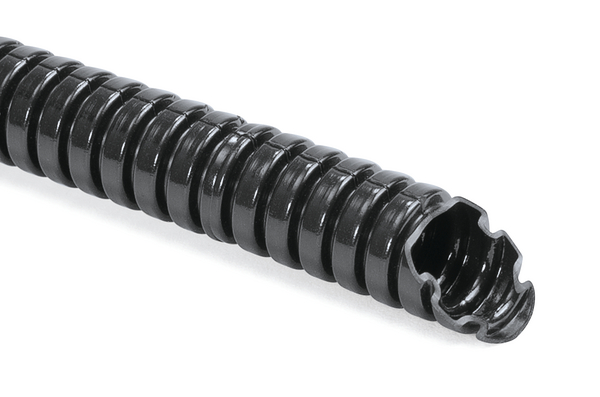

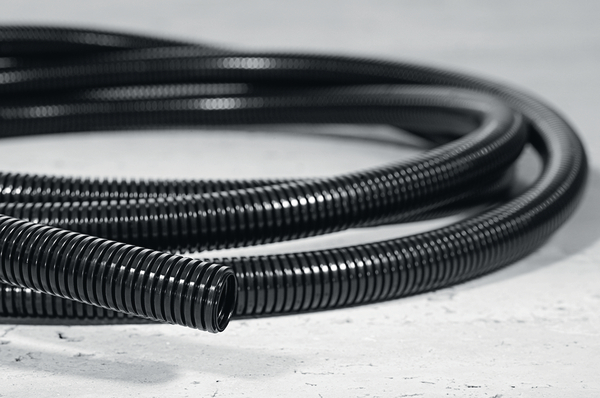

Light weight corrugated flexible conduit PA6 ø34mm reel 50m
Art.-No. 166-11206 | HG-LW34-PA6-BK Details

  • Light weight
  • Very flexible and high fatigue life
  • Small bending radius
  • High impact strength and recovers if crushed
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Colour: black; grey on request
Show more

Request your individual offer now

Application Light weight corrugated flexible conduit for machine building, plant construction, control panels and public buildings.
Application Tool CONCUTTER1, CONCUTTER2
Colour Black (BK)
Conduit Model Plastic corrugated
Local order number HG-LW34-PA6-BK-50M
Material Polyamide 6 (PA6)
PART DESCRIPTION HG-LW34-PA6-BK
Pack Cont. 50m
Package Content packed in Reel
Pitch Type coarse
Product Family HG-LW PA6 Light Weight
Product Group Non-Metallic Conduits
Short Description Light weight corrugated flexible conduit PA6 ø34mm reel 50m
Type HG-LW34
Bending Radius min. (R) 55mm
Diameter (D) 28.3mm
Inside Ø (ID) 28.3mm
Length (L) 50m
NW ∅ 29mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1.31"
Outside Ø (OD) 34.5mm
Weight 110g/m
Weight/Unit 0.11kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 24244066-210
Flammability EN IEC 61386
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Oil resistant Yes
Operating Temperature -40 °C to +120 °C
Operating Temperature Moving -20 °C to +100 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Specifications ANSI/UL 1696, csa-C22.2 No.227.3
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E325250
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026302454
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.64m
Packaging 1 - Qty 50
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.12288
Packaging 1 - Weight (kg) 5.5kg
Packaging 1 - Width (m) 0.64m
Packaging 3 - Qty 400
Packaging 3 - Type Carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 85.88kg
Packaging 4 - Width (m) 0.8m
Reel Length 50m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
