Fittings with fixed external thread : HGL34-45-M32

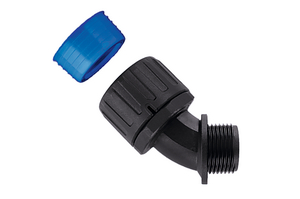

Elbow Fitting 45° with Fixed External Thread IP68 ø34mm M32, Article number: 166-24003
Features
- One piece, fast fit
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Metric threads supplied with locknuts
Certifications & Approvals
Application
45° elbow external thread with conduit seal and washer.
Fulfils IP66, IP67, IP68 and IP69k.
HGL-45 45° Elbow, IP68 is suitable for following markets and industries
More products in this product group
Fittings with fixed external thread >| Brass Thread (Y/N) | No |
| Colour | Black (BK) |
| Features and Benefits | 45° elbow external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k. |
| Pack Cont. | 10pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | HGL34-45-M32-PA66/TPE-BK |
| Product Family | HGL-45 45° Elbow, IP68 |
| Product Group | Fittings with fixed external thread |
| Short Description | Elbow Fitting 45° with Fixed External Thread IP68 ø34mm M32 |
| Strain Relief Function (Y/N) | No |
| Swivel Thread (Y/N) | No |
| Thread type | metric |
| Type of connection | Snap-connection |
| Variant | 45°-elbow |
| Face Diameter FD (metric) | 40mm |
| Length (L) | 81mm |
| Length (L2) | 16mm |
| Lowest inner diameter | 24.5mm |
| Min. Bore Size (B) | 24.5mm |
| Nominal ∅ | 34mm |
| Nominal ∅ (imperial) | 1.31" |
| Nut Size (NS) | 49mm |
| NW ∅ | 29mm |
| Outside ∅ max (OD max.) | 51mm |
| Thread Length (TL) | 16mm |
| Thread Size | M32 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP66, IP67, IP68, IP69k |
| Material | Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE) |
| Material of fitting ETIM | Polyamide (PA) |
| Operating Temperature - °C | -50 °C to +135 °C |
| Specifications |
|
| Specifications | CSA-C22.2 No.227.3 |
| UL OCD link | Link |
| UL-File Number | E325250 |
|
|
|
| EAN / GTIN | 4031026305400 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00677m³ |
| Packaging 1 - Weight (kg) | 0.43kg |
| Packaging 1 - Width (m) | 0.18m |
| Weight | 0.43kg |
| ETIM 6.0 | EC001176 |
| ETIM 7.0 Key | EC001176 |
