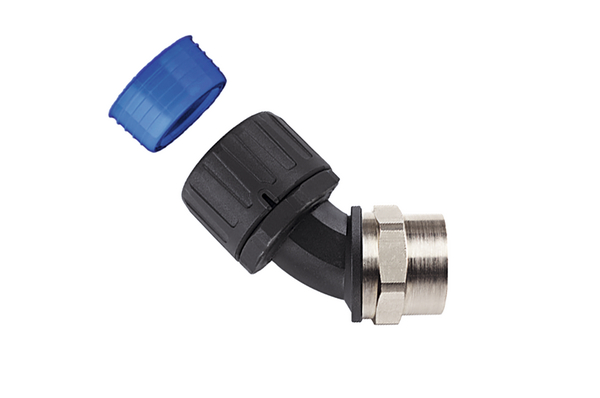

Fitting for corrugated tubing, nom⌀21mm, M20, 45°, black, 10pcs.
Art.-No. 166-24401
| HGL21-45F-M20-PA66/NPB/TPE-BK
|
Copied
- One piece, fast fit
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Request quote
More products in this product group:
| Application |
45° elbow swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k. |
| Brass Thread (Y/N) | Yes |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | HGL21-45F-M20-PA66/NPB/TPE-BK |
| Package Content | 10pcs. |
| Package Content packed in | Bag |
| Product Family | HGL-45F 45° Elbow Swivel Internal Thread, IP68 |
| Product Group | Fittings with swivel internal thread |
| Short Description | Elbow Fitting 45° with Swivel Internal Thread IP68 ø21mm M20 |
| Strain Relief Function (Y/N) | No |
| Swivel Thread (Y/N) | Yes |
| Thread type | metric |
| Type | HGL21-45F-M20 |
| Type of connection | Snap-connection |
| Variant | 45°-elbow |
| Weight/Unit | 0.043822kg |
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Copper alloy |
| EC Number | 231-100-4 |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66, IP67, IP68, IP69k |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
|
|
|
| Country of Origin | GB |
| Customs Number | 39174000 |
| GTIN-13 / EAN | 4031026305684 |
| Packaging 1 - Height (m) | 0.085m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.003128m³ |
| Packaging 1 - Weight (kg) | 0.438221kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 40 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 2.052884kg |
| Packaging 2 - Width (m) | 0.267m |
