Non-Metallic Conduits : HG-PP16

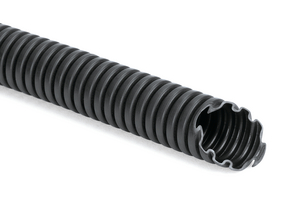

Standard weight conduit PP ø16mm reel 50mArticle number: 166-11902
Features
- Very flexible
- Abrasion resistant
- Resistant to acids and alkalis
- Self-extinguishing to IEC 61386
Certifications & Approvals
Application
Machine building, electrical installations, buildings, particularly when buried in concrete or plaster.
More products in this product group
Non-Metallic Conduits >| Application Tool | CONCUTTER1, CONCUTTER2 |
| Colour | Black (BK) |
| Conduit Model | Plastic corrugated |
| Features and Benefits | The standard conduit made from Polypropylene |
| Pack Cont. | 50m |
| PART DESCRIPTION | HG-PP16-PP-BK |
| Pitch Type | fine |
| Product Family | HG-PP PP Standard Weight |
| Product Group | Non-Metallic Conduits |
| Short Description | Standard weight conduit PP ø16mm reel 50m |
|
|
|
| Diameter (D) | 11.8mm |
| Inside Ø (ID) | 11.8mm |
| Min. Bending Radius (R) | 35mm |
| Nominal ∅ | 16mm |
| Nominal ∅ (imperial) | 0.63" |
| NW ∅ | 12mm |
| Outside Ø (OD) | 15.8mm |
| Weight | 30g/m |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | self-extinguishing according to EN IEC 61386 |
| Hazardous good | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Material | Polypropylene (PP) |
| Oil resistant (Yes/No) | Yes |
| Operating Temperature - °C | -20 °C to +90 °C |
| Specifications |
|
| Specifications | IEC 61386 |
|
|
|
| EAN / GTIN | 4031026325453 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.43m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.01806m³ |
| Packaging 1 - Weight (kg) | 1.5kg |
| Packaging 1 - Width (m) | 0.28m |
| Reel Length | 50m |
| Weight | 1.5kg |
| ETIM 6.0 | EC001175 |
| ETIM 7.0 Key | EC001175 |
