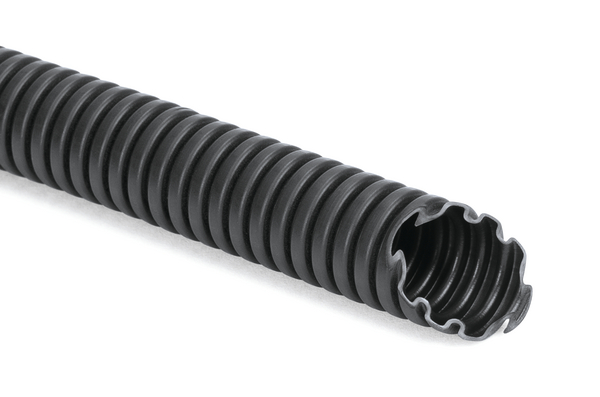

Standard weight conduit PP ø 67mm reel 10m
Art.-No. 166-11911 | HG-PP67-PP-BK Details

  • Very flexible
  • Abrasion resistant
  • Resistant to acids and alkalis
  • Self-extinguishing to IEC 61386

Request your individual offer now

Application Machine building, electrical installations, buildings, particularly when buried in concrete or plaster.
Colour Black (BK)
Material Polypropylene (PP)
PART DESCRIPTION HG-PP67-PP-BK
Pack Cont. 10m
Pitch Type coarse
Product Family HG-PP PP Standard Weight
Product Group Non-Metallic Conduits
Short Description Standard weight conduit PP ø 67mm reel 10m
Type HG-PP67
Bending Radius min. (R) 150mm
Diameter (D) 56.3mm
Inside Ø (ID) 56.3mm
NW ∅ 56mm
Nominal ∅ 67mm
Nominal ∅ (imperial) 2.63"
Outside Ø (OD) 67.2mm
Weight 250g/m
Weight/Unit 0.266kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
Flammability EN IEC 61386
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Oil resistant Yes
Operating Temperature -20 °C to +90 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026325545
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.7m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.1225
Packaging 1 - Weight (kg) 2.66kg
Packaging 1 - Width (m) 0.7m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 120
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 32.42kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 53.42kg
Packaging 4 - Width (m) 0.8m
Reel Length 10m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
