Elbow Fitting 45° with Fixed External Thread IP66 ø34mm M32 grey
Art.-No. 166-23414 | HG34-45-M32-PA66-GY Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
Show more

Request your individual offer now

Application 45° elbow external thread.
Brass Thread (Y/N) No
Colour Grey (GY)
Material Polyamide 6.6 (PA66)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HG34-45-M32-PA66-GY
Product Family HG-45 45° Elbow, IP66
Product Group Fittings with fixed external thread
Short Description Elbow Fitting 45° with Fixed External Thread IP66 ø34mm M32 grey
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Type of connection Snap-connection
Variant 45°-elbow

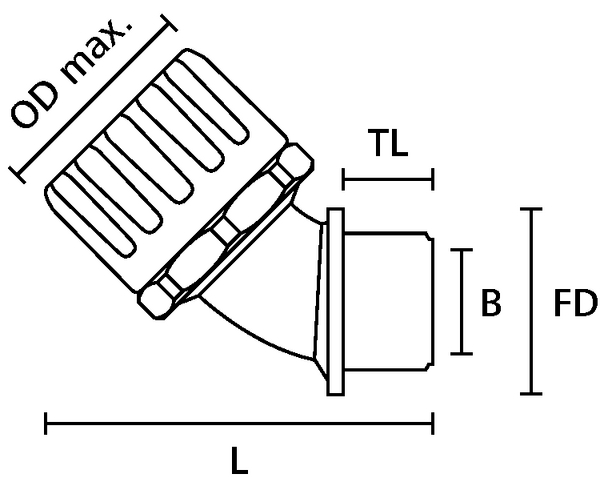

Angle 45°
Face Diameter FD (metric) 40mm
Length (L) 81mm
Min. Bore Size (B) 24.5mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1.31"
NW ∅ 29mm
Outside ∅ max (OD max.) 51mm
Thread Length (TL) 16mm
Thread Size M32
Flammability UL 94 V2
Halogen-free Yes
IP-Rating IP66
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
GTIN-13 / EAN 4031026409016
Packaging 1 - Weight (kg) 0.041kg
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
