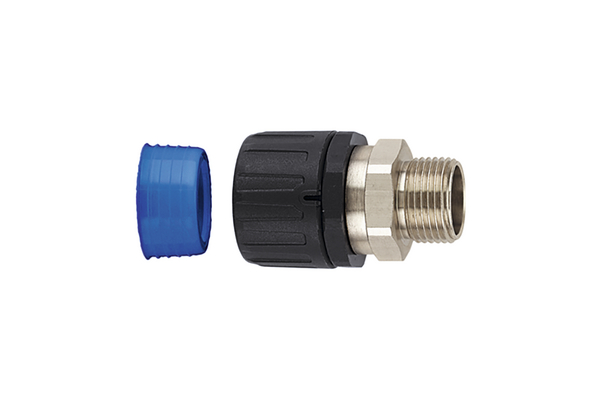

Straight Fitting with Swivel External Thread IP68 ø28mm PG21
Art.-No. 166-21914 | HGL28-SM-PG21-PA66/NPB/TPE-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel brass external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) Yes
Colour Black (BK)
Local order number HGL28-SM-PG21-PA66/NPB/TPE-BK-10ST
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
PART DESCRIPTION HGL28-SM-PG21-PA66/NPB/TPE-BK
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family HGL-SM Straight Swivel External Thread, IP68
Product Group Fittings with swivel external thread
Short Description Straight Fitting with Swivel External Thread IP68 ø28mm PG21
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type not applicable
Type HGL28-SM-PG21
Type of connection Snap-connection
Variant Straight

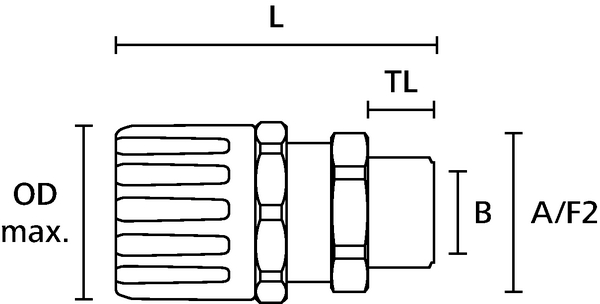

A/F Thread (A/F2) 35mm
Length (L) 64mm
Lowest inner diameter 19.5mm
Min. Bore Size (B) 19.5mm
NW ∅ 23mm
Nominal ∅ 28mm
Nominal ∅ (imperial) 1.13"
Outside ∅ max (OD max.) 44mm
Thread Length (TL) 14mm
Thread Size PG21
Weight/Unit 0.0958kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026303734
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00578
Packaging 1 - Weight (kg) 0.958001kg
Packaging 1 - Width (m) 0.25m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 20
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 2.216002kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
