The inset sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.

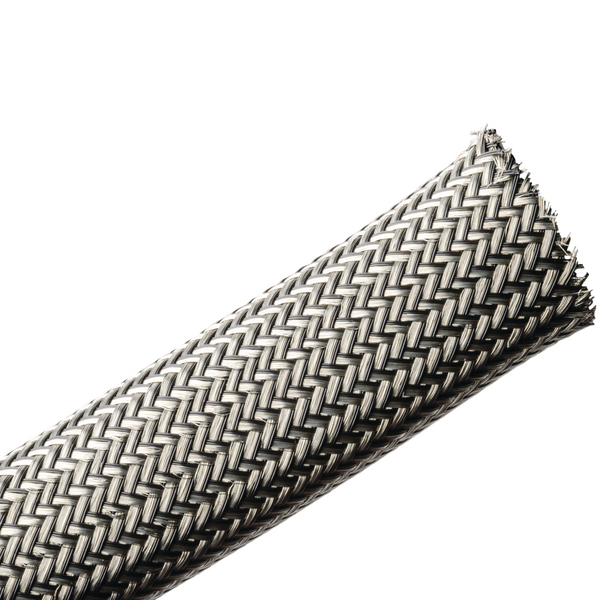

Braided sleeving for electromagnetic protection 18-25 mm, UL94V0, tin-coloured/black, 50 m
Art.-No. 173-62000
| HEGEMIPV020-PBT/SNCU-BK/ML
|
Copied
This product is not available anymore.
- Excellent electromagnetic protection
- Extremely flexible, expandable and easy to apply
- Self-extinguishing according to UL94 V0
- Superior abrasion protection
- No kinks or tears, even when bending the sleeve 90°
- Particularly suitable for applications with restricted space or requiring movement

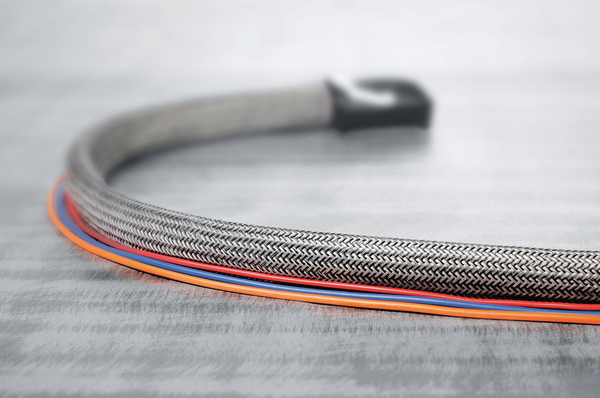

- Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
- Fulfils the requirements of IEC CISPR25 for radio disturbances in vehicles, boats and engines
Request your individual offer now
Request quote
More products in this product group:
| Application | Helagaine HEGEMIPV0 braided sleeving is used for protection of highly sensitive electronics in industries, wherever fire protection is important, such as mass transit, aerospace and military industries. |
| Colour | Black (BK), Metal (ML) |
| Internet Customer Notice | The inset sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application. |
| Material | Polyester (PBT), Tin Plated copper (SNCU) |
| Open, post termination (Yes/No) | Yes |
| PART DESCRIPTION | HEGEMIPV020-PBT/SNCU-BK/ML |
| Package Content | 50m |
| Package Content packed in | metre |
| Product Family | Helagaine HEGEMIPV0 |
| Product Group | Braided sleeving for electromagnetic protection, UL94V0 classification |
| Short Description | Braided sleeving for electromagnetic protection 18-25 mm, UL94V0, tin-coloured/black, 50 m |
| Type | HEGEMIPV020 |
| Weight/Unit | 0.254kg |
Download
| Abrasion Resistance | High |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| EMI requirements | 10 KHz to 1 GHz according to CISPR25 (DIN VDE 0879-2) |
| Flammability | UL 94 V0, FMVSS 302 |
| Halogen-free | No |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 74198090 |
| GTIN-13 / EAN | 4031026227597 |
| Packaging 3 - Height (m) | 0.3m |
| Packaging 3 - Length (m) | 0.45m |
| Packaging 3 - Qty | 50 |
| Packaging 3 - Type | Reel |
| Packaging 3 - Volume (m³) | 0.0608m³ |
| Packaging 3 - Weight (kg) | 12.77kg |
| Packaging 3 - Width (m) | 0.45m |
| Packaging 4 - Height (m) | 1.045m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 450 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.003m³ |
| Packaging 4 - Weight (kg) | 135.93kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 50m |
| Reel Length (imperial) | 164.0ft |
