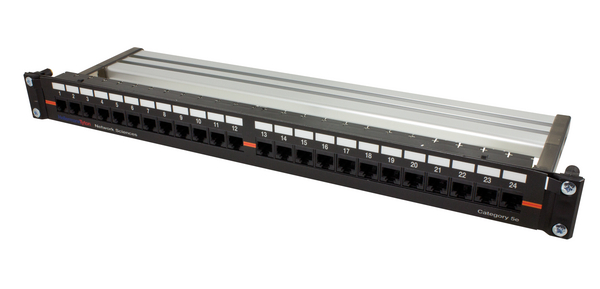

Alpha Snap Category 5e : 1/2408IDCHDC5ECM/BK

1U 24 Port Panel, Article number: 853-30336


  • Exceeds Category 5e performance standards
  • All modules are individually removable and replaceable
  • 568A or 568B wiring options

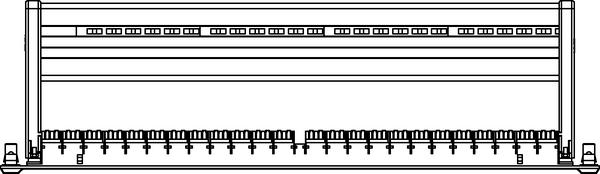

  • Includes aluminium rear cable management as standard
  • Patented slide label system and software available
  • Supplied with Rack Snap mounting fixings
  • Also supplied in a 2U 48 port configuration
  • Backward compatible to Category 5 and voice
Colour Black (BK)
Density low
Description The Alpha Snap Category 5e product range from HellermannTyton is designed to offer exceptional Category 5e performance. The patch panel comprises individual modular PCB’s providing flexibility in the case of port damage or failure. The Alpha Snap Panel is available in 1U 24 port and 2U 48 port versions and is supplied with HellermannTyton’s unique aluminium snap-on rear cable management and Rack Snap mounting fixings as standard. The Alpha Snap products are designed to support any data or voice protocol capable of running over a Category 5e cabling system.
Pack Cont. 1pc.
Panel Fixing Method rack snap
Performance Category Category 5E (Class D)
Port count 24
Product Family 1U 24 Port Panel
Product Group Alpha Snap Category 5e
Technical Description The Alpha Snap Category 5e patch panel is manufactured from black powder coated mild steel and the PCB modules are mounted in the unique Alpha Snap plastic moulding which is attached to the front of the panel. Each PCB module is equipped with a cable retention bar and the end modules of each horizontal row are colour coded and numbered for error free termination. The Alpha Snap Panel incorporates HellermannTyton’s patented sliding label system, enabling clear and effective port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Alpha Label software package is available for download at and enables straight forward port labelling. The Alpha Snap Category 5e Panels offer backward compatibility with Category 5 and voice products.
Type 1/2408IDCHDC5ECM/BK

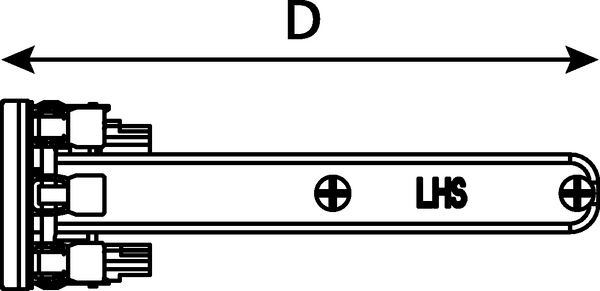

Depth (D) 136mm
Height (H) 44mm
Height, Units 1U
Width (W) 483mm
Dimensions W x H x D 483 mm x 44 mm x 136 mm
EAN / GTIN 5022660843587
Weight 1.04kg
