This item will be discontinued from general sale on 31/12/2018

Category 3 Voice : 1/2508VIDC4PR/BK CNK

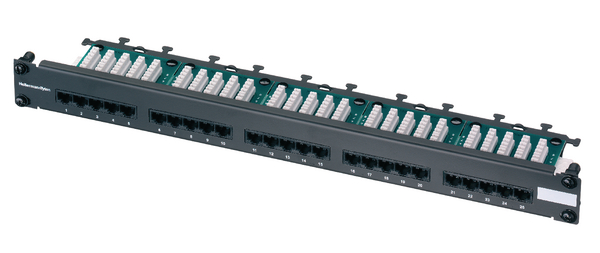

25 Port Panel, Article number: 853-00097


  • 1U 25 Port Voice Panel
  • Integral rear cable management
  • Screen printed numbered ports
  • All 4 pairs presented
  • Exceeds all ISO/IEC 11801 and ANSI/TIA/EIA 568-C.2 performance standards
  • Cage Nut mounting kit supplied as standard
Colour Black (BK)
Description HellermannTyton’s range of voice panels offer exceptional Category 3 performance with the 25 port panel presenting 25 RJ45 ports in 1U of space. The High Density Category 3 Voice Panel is supplied with Cage Nut fixings as standard, the panel is also available with Rack Snap fixings if required. The 25 Port Voice Panel is designed to support any existing voice infrastructure running over a Category 3 system.
Internet Customer Notice This item will be discontinued from general sale on 31/12/2018
Performance Category Category 3 (Class C)
Port count 25
Product Family 25 Port Panel
Product Group Category 3 Voice

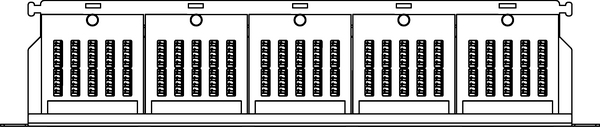

Technical Description The panel enables vertical IDC punch down for ease of termination and has integral cable management to provide support and protection for the cables. The panel is manufactured from black powder coated mild steel and each individual port is screen printed for easy identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 3.

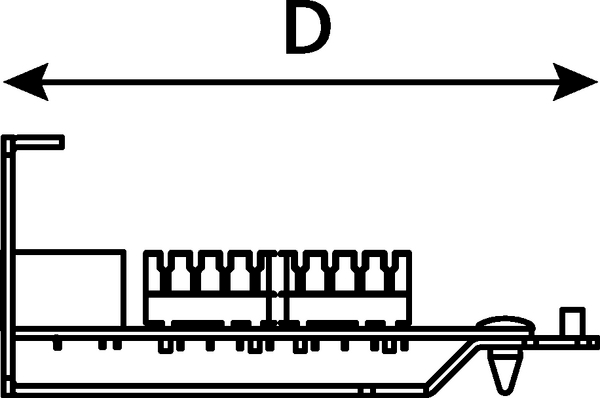

Depth (D) 102mm
Height (H) 44mm
Width (W) 483mm
Dimensions W x H x D 483 mm x 44 mm x 102 mm
EAN / GTIN 5022660836442
