This item will be discontinued from general sale on 31/12/2018

Category 3 Voice : 1/5008VIDC/BK

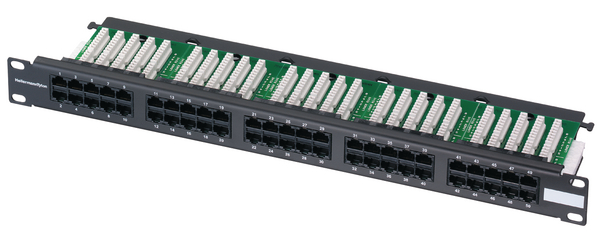

50 Port Panel, Article number: 853-00008

Features

  • High Density Voice Panel 50 ports per 1U
  • Integral rear cable management
  • Screen printed numbered ports
  • All 4 pairs presented
  • Exceeds ISO/IEC 11801 and ANSI/TIA/EIA 568-C.2 performance standards
  • Rack Snap mounting kit supplied as standard
Colour Black (BK)
Description • Accepts 1, 2, 3 and 4 pairs per RJ45 circuit • Built in rear cable management • Screen printed labelling scheme • Harmonica jack configuration • Supports Category 3 performance
Internet Customer Notice This item will be discontinued from general sale on 31/12/2018
Pack Cont. 1pc.
Panel Fixing Method rack snap
PART DESCRIPTION 1/5008VIDC/BK
Performance Category Category 3 (Class C)
Port count 50
Product Family 50 Port Panel
Product Group Category 3 Voice
Technical Description The panel enables vertical IDC punch down for ease of termination and has integral cable management to provide support and protection for the cables. The panel is manufactured from black powder coated mild steel and each individual port is screen printed for easy identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 3.
Type 1/5008VIDC/BK

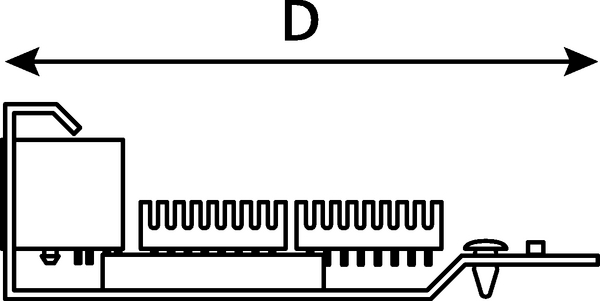

Depth (D) 134mm
Height (H) 44mm
Height, Units 1U
Width (W) 483mm

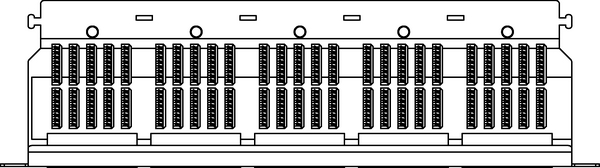

Dimensions W x H x D 483 mm x 44 mm x 134 mm
EAN / GTIN 5022660836060
