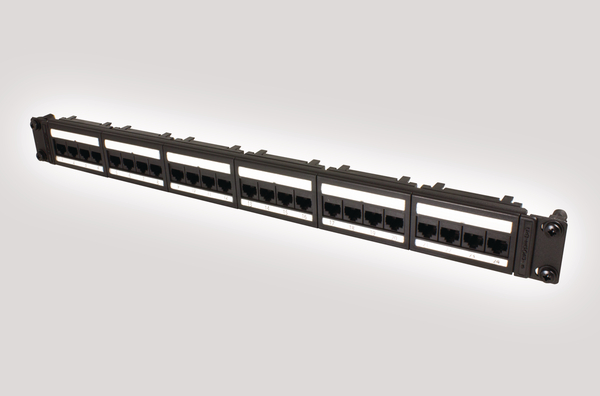

CAT6 Unshielded 24 Port Panel
Art.-No. 853-45004
| 1/2408IDC G6/BK
|
Copied
This product is not available anymore.
- Unshielded 1U 24 ports
- Flat LSA Punch Down Presentation
- 568A/B wiring options
- Double labelling fields
- Supplied with Rack Snap mounting fixings
- Exceptional Category 6 performance
- Part of the HellermannTyton 25 year system warranty program
- Backwards compatible with voice applications
- Optional cable management
Show more
Show less
Request quote
More products in this product group:
| Colour | Black (BK) |
| Description | HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. Available in 1U 24 port and 2U 48 port presentations. Each panel is constructed of 6 modular units, each offering 4 RJ45 ports. There are two labelling fields as standard with a magnifying lens for clear identification. Each panel is supplied with Rack Snap fixings as standard. |
| Local order number | 1/2408IDC G6/BK |
| PART DESCRIPTION | 1/2408IDC G6/BK |
| Panel Fixing Method | rack snap |
| Performance Category | Category 6 (Class E) |
| Port count | 24 |
| Product Family | 1U Flat |
| Product Group | CAT6 Unshielded 24 Port Panel |
| Technical Description | The Category 6 Patch Panel is manufactured from black powder coated mild steel with a 4 port modular PCB assembly jack presentation which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. Each panel is supplied with a comprehensive T568A/B wiring guide label on the rear of the modules to ensure error free terminations. Category 6 panels are also backwards compatible and will support cat5e & voice applications. |
| Type | 1/2408IDC G6/BK |
