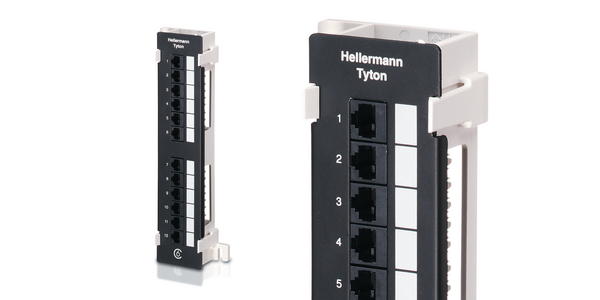

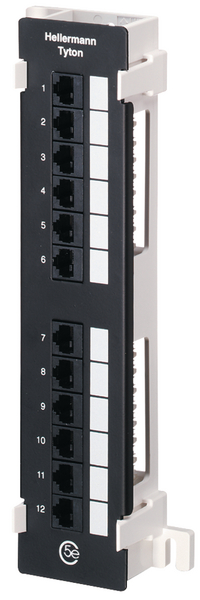

Universal 110 Category 5e : PP110C5E12V

Vertical 12 Port Panel, Article number: 853-20074


  • Exceeds Category 6 performance standards
  • Stand-alone wall mountable panel for quick installation
  • 110 IDC punch down for easy termination
  • Configured for T568A and T568B wiring
  • Fits into most EIA-310-D standard racks or cabinets with square holes
  • Write-on labels provided for easy identification
  • Backward compatible with Category 5 and voice applications

Certifications & Approvals

Colour Black (BK)
Description The Vertical Universal 110 Category 5e range of patch panel offers exceptional performance in a 12 port vertical presentation. The panel is constructed of 2 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The panels design allows it to be used as a stand-alone wall mounted panel as well as being compatible with most EIA-310-D standard racks or cabinets with square holes. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
Pack Cont. 1pc.
Package Quantity per Box
Performance Category Category 5E (Class D)
Port count 12
Product Family Vertical 12 Port Panel
Product Group Universal 110 Category 5e
Technical Description The vertical IDC punch down ensures ease of installation and the rear cable management provides support and protection for the cables. The panels are manufactured with 110 IDC punch down blocks and are supplied with a clear plastic channel which protects the PCB and allows for easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Category 5e Vertical 12 Port Panel offers backward compatibility with Category 5 and voice products.
Type PP110C5E12V

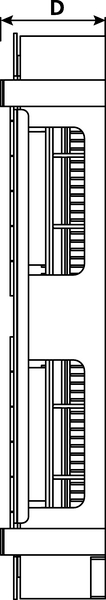

Depth (D) 47.0mm
Height (H) 85.0mm
Height, Units 1U

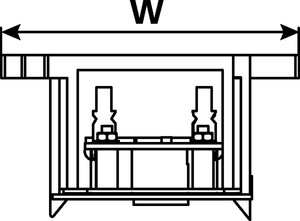

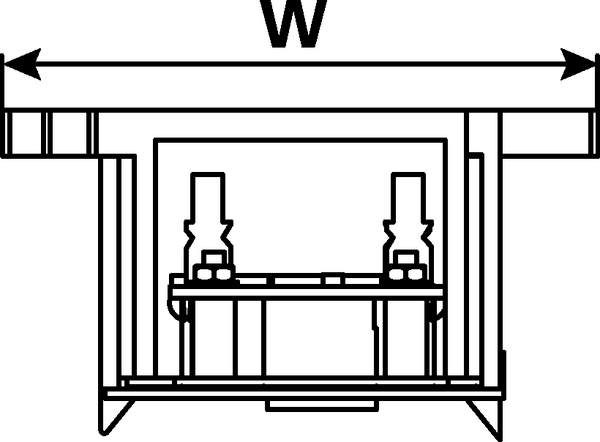

Width (W) 255.0mm
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Dimensions W x H x D 255.0 mm x 85.0 mm x 47.0 mm
EAN / GTIN 5022660839405
UNSPSC Key 43223309
