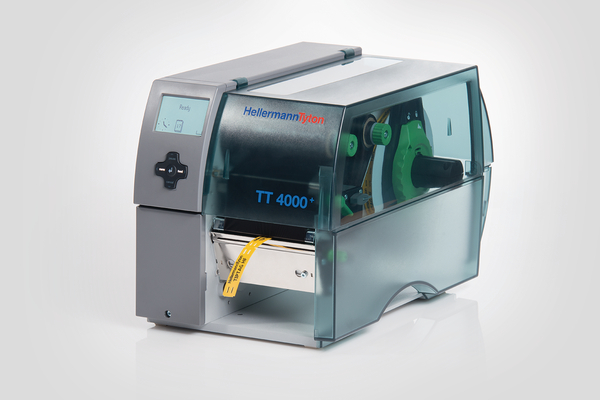

Thermal transfer printer : TT4000+UK

TT4000+Article number: 556-04008

This product is not available anymore.


  • High volume single sided printing
  • Print on THTT DS, TLFX DS, TDRT DS and TULT DS ("Ladder" products)
  • Print on THTT, TLFX, TDRT, TULT, and TCGT (Continuous tubing)
  • Print on TAGHT, TAGLF, TAGDR, TAGUL, Tiptags
  • Print on adhesive labels
  • Uses standard 300 m ribbons
  • Barcodes: standard and 2D
  • Print speed up to 125 mm/s (30 mm/s recommended for Ladder Products and Tubing)
  • Multiple language selection
  • Windows drivers: 32/64 bit for Windows XP, Windows Vista, Windows 7, and Windows 8

Certifications & Approvals


The TT4030 is optimally suited to industrial use and is designed for a wide range of applications. High reliability and multiple peripherals enable applications and solutions tailored to specific customer requirements. This printer is perfect for printing onto HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. It is easy to use thanks to its display and clear status messages which can be shown in multiple languages. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be.

Colour Grey (GY)
Features and Benefits • Print on ShrinkTrak • Print on Adhesive Labels • Print on TIPTAG • Uses standard ribbons • Print head 300dpi • Barcodes: standard and 2D • Print speed up to 125mm/s • Max print width 106 mm •·Max print length 1000mm • Adjustable label sensor • 64MB RAM • Multiple language selection • Interfaces: Serial RS 232 C, USB2.0, Ethernet 10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP, SMTP, SNMP, NTP, USB Master for keyboard and scanner • Windows drivers: 2000, 2003, XP, Vista • Options: cutter S4000 and perforator P4000 • Dimensions: 242mm (W) x 446mm (D) x 274mm (H) • Weight 9kg
Pack Cont. 1pc.
Package Quantity per Box
Product Family TT4000+
Product Group Thermal transfer printer
Type TT4000+UK
Depth (D) 446mm
Height (H) 274mm
L x H x W 446 x 274 x 242 mm
Label Height Max (metric) 4000mm
Label Height Min (metric) 5mm
Label Width Max (imperial) 4.25"
Label Width Max (metric) 106mm
Label Width Min (imperial) .65"
Label Width Min (metric) 4mm
Label Width min - max 4 - 106 mm
Print Method Thermal transfer printing
Width (W) 242mm
Interfaces RS232 C, USB 2.0, Ethernet 10/100 Base T
Max. Print Width 105.6mm
Print Head Type 300 dpi, flat type
Print Speed 30, 40, 50, 75, 100, 125 mm/s
Printer Memory 64MB RAM
Specifications CEN, FCC, UL
Supported Barcodes, Printer Standard, 2D
Supported Consumables Print on TLFX DS and TULT DS Print on TLFX, TULT, and TCGT continuous tubing Print on Tiptags Print on Adhesive Labels
UL Recognized (US and Canada) No
Dimensions W x H x D 242 mm x 274 mm x 446 mm
EAN / GTIN-13 5022660552991
Weight 9kg
ETIM 6.0 EC001672
ETIM 7.0 Key EC001672
Printer/Reader variant desktop
