Cable cover 29 mm - 32 mm, PA6V0, black, 25m + tool
Art.-No. 161-63501 | HWPAV030-PA6V0-BK Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Self-extinguishing according to UL94 V0
  • Very good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy applicator tool included
Show more

Request your individual offer now

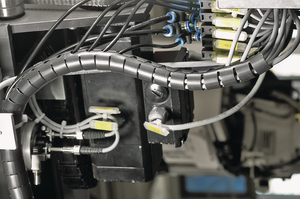

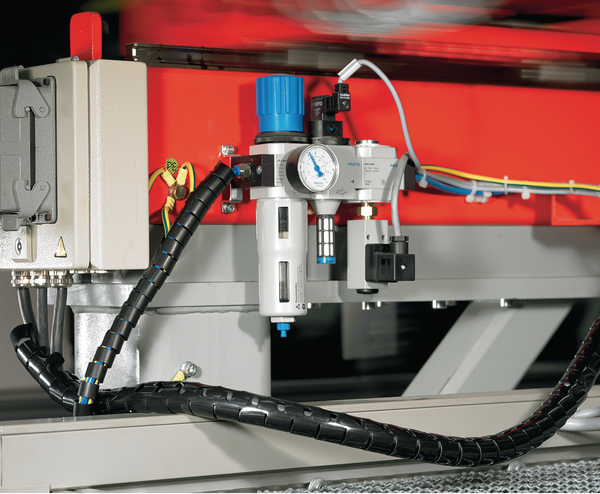

Application Helawrap HWPAV0 is used to bundle and protect cable and wires, especially if there is vibration and abrasion. HWPAV0 has excellent flame-retardant properties and is halogen-free.

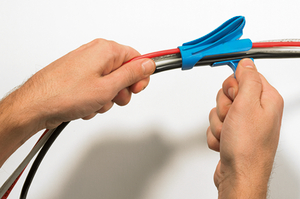

Application Method Place cables in applicator, then zip through cover sleeve.
Application Tool HAT30
Colour Black (BK)
Content 25m + tool
Local order number HWEV030BKX25M
Material Polyamide 6 V0 (PA6V0)
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION HWPAV030-PA6V0-BK
Product Family Helawrap HWPA-V0
Product Group Cable Cover, Material: PA6, UL94V0
Short Description Cable cover 29 mm - 32 mm, PA6V0, black, 25m + tool
Variant Spiral Binding
Bundle Diameter max (Metric) 32mm
Bundle ∅ 29-32mm
Bundle ∅ min. 29mm
Diameter (D) 30.0mm
Length (L) 25m
Nominal ∅ 30mm
Nominal ∅ (imperial) 1.19"
Pitch (P) 23.88mm
Pitch (P) (imperial) 0.94"
Wall (WT) 1.30mm
Wall (WT) (imperial) 0.050"
Weight/Unit 0.148kg
∅ D (imperial) 1.25"
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +120°C
Melting Point +248 °F (+120 °C)
Operating Temperature -40 °C to +90 °C, intermittent +120 °C
Specifications
Specifications EN 45545-2, UL 1441
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E341700
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660437212
Packaging 3 - Height (m) 0.335m
Packaging 3 - Length (m) 0.39m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.051
Packaging 3 - Weight (kg) 4.4kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.149m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 450
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.103
Packaging 4 - Weight (kg) 100.2kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
Reel Length (imperial) 82.0ft
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
