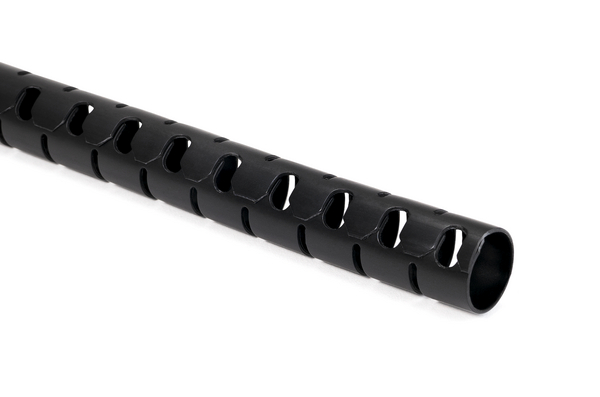

Cable Cover, Material: PA6, UL94V0 HWPAV025

Helawrap HWPA-V0, Article number: 161-63401

Features

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Self-extinguishing according to UL94 V0
  • Very good abrasion protection

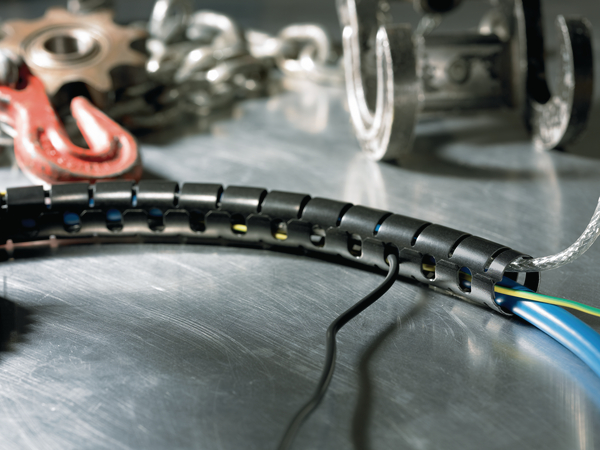

  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy applicator tool included

Certifications & Approvals

Application

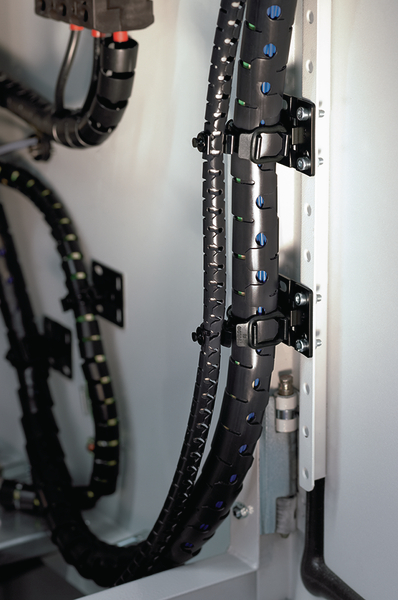

Helawrap HWPAV0 is used to bundle and protect cable and wires, especially there is vibration and abrasion. HWPAV0 has excellent flame-retardant properties and is halogen-free.

Helawrap HWPA-V0 is suitable for following markets and industries

Application 2 Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential.
Application Tool HAT25
Colour Black (BK)
Content 25m + tool
Description Short (BMEcat) (max. 150 characters) Cable cover 23 mm - 27 mm, PA6V0, black, 25m + tool
GLOBAL PART DESCRIPTION HWPAV025-PA6V0-BK
Pack Cont. 25m
Package Quantity per Reel
Product Family Helawrap HWPA-V0
Product Group Cable Cover, Material: PA6, UL94V0
Type HWEV025BKX25M

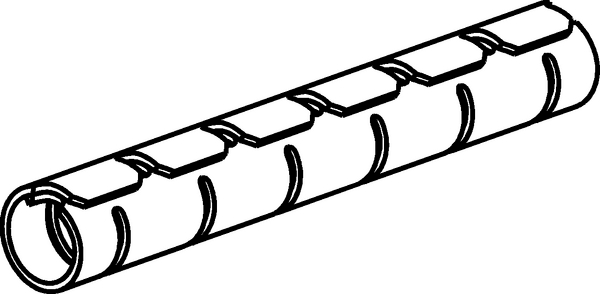

Variant Spiral Binding
Bundle ∅ max. 27mm
Bundle ∅ min. 23mm
Bundlediamter Range ETIM (Braided Sleeving) 23-27
Diameter (D) 24.0mm
Length (L) 25m
Nominal ∅ 25.0mm
Nominal ∅ (imperial) 1"
Pitch (P) 20.07mm
Pitch (P) (imperial) 0.79"
Wall (WT) 1.05mm
Wall (WT) (imperial) 0.041"
∅ D (imperial) 1.0"
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +120°C
Material Polyamide 6 V0 (PA6V0)
Melting Point +248 °F (+120 °C)
Operating Temperature - °C -40 °C to +90 °C, intermittent +120 °C
Specifications
Specifications UL 1441, UNI EN 45545-2:2015
UL Recognized (US and Canada) Yes
UL-File Number E341700
EAN / GTIN 5022660119293
Packaging 1 - Height (m) 0.28m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.03833
Packaging 1 - Weight (kg) 2.15kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.335m
Packaging 3 - Length (m) 0.385m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0503
Packaging 3 - Weight (kg) 2.65kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.15m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 450
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.104
Packaging 4 - Weight (kg) 68.7kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
Reel Length (imperial) 82.02ft
Weight 2.15kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
UNSPSC Key 39131604
