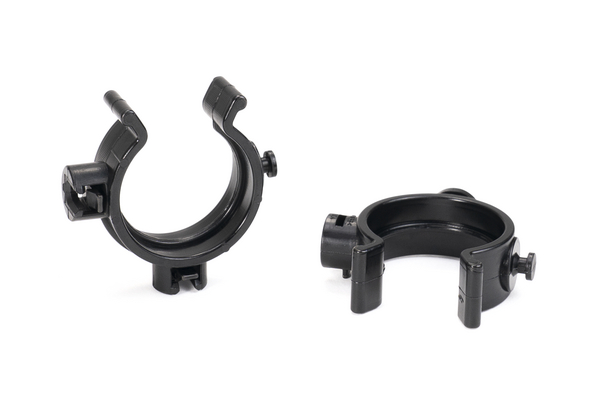

Accessory for HWBASE, HWPA-V025, Helawrap, black, 50pcs. (HWCLIP25)
Art.-No. 161-64008 | HWCLIP25-PA66HIRHS-BK Details

  • Mounts and routes Helawrap cable cover flexibly and efficiently
  • Fit snugly around the cable cover and holds it tight
  • Each clip can be joined to mounting plate or other clips of any size
  • Each clip rotates freely
  • Easily released and re-used
  • Mounting plates fixed with screws, cable ties or adhesive
Show more

Request your individual offer now

Application To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available. The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface.
Application Method Place cables in applicator, then zip through cover sleeve.
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 50pcs.
Package Content packed in Bag
PART DESCRIPTION HWCLIP25-PA66HIRHS-BK
Product Family HWClips
Product Group Acessories for retaining Helawrap Open Cable Cover
Short Description Fixing clip PA66HIRHS nominal ∅ 25mm black
Diameter (D) 25mm
Nominal ∅ 25.0mm
Nominal ∅ (imperial) 1"
Weight/Unit 0.00296kg
∅ D (imperial) 0.98"
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Melting Point +284 °F (+140 °C)
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026268644
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.285m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0013
Packaging 1 - Weight (kg) 0.155kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 1500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.8331kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 137.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000368
ETIM 8.0 Key EC000368
ETIM 9.0 Key EC000368
UNSPSC Key 39131604
