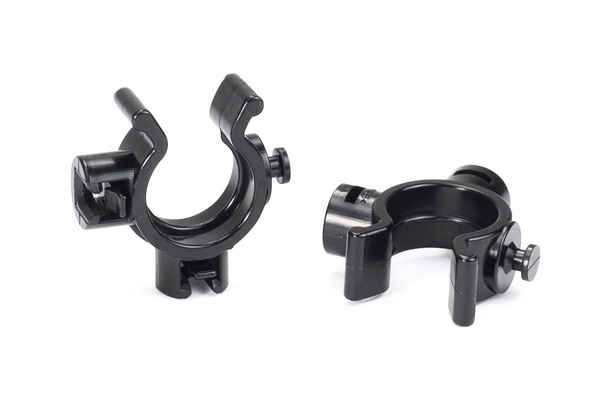

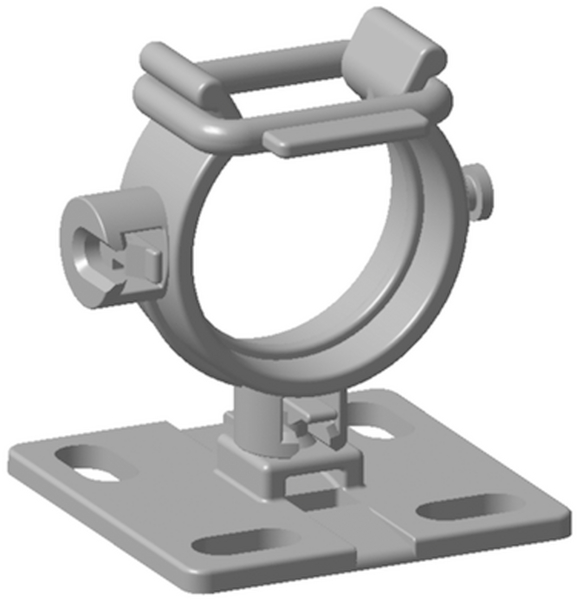

Acessories for retaining Helawrap Open Cable Cover  HWCLIP16

HWClips, Article number: 161-64004

Features

  • Mounts and routes Helawrap cable cover flexibly and efficiently
  • Fit snugly around the cable cover and holds it tight

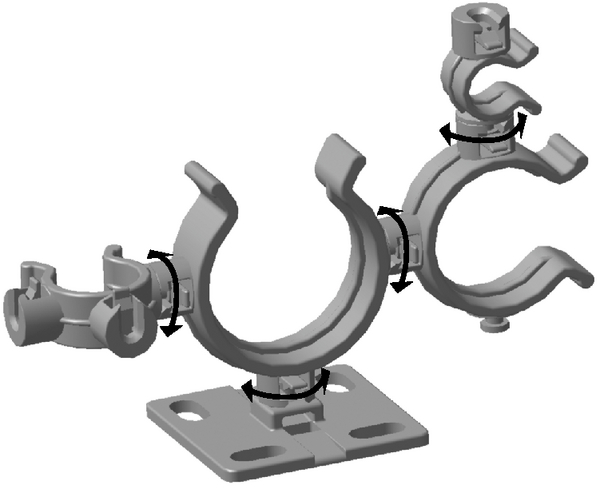

  • Each clip can be joined to mounting plate or other clips of any size
  • Each clip rotates freely
  • Easily released and re-used

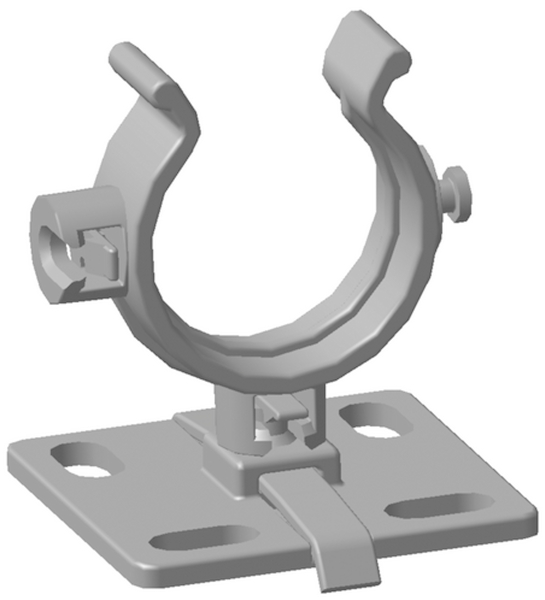

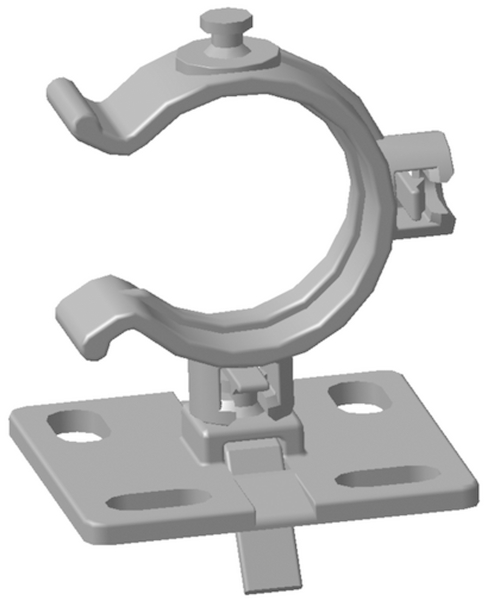

  • Mounting plates fixed with screws, cable ties or adhesive

Certifications & Approvals

Application

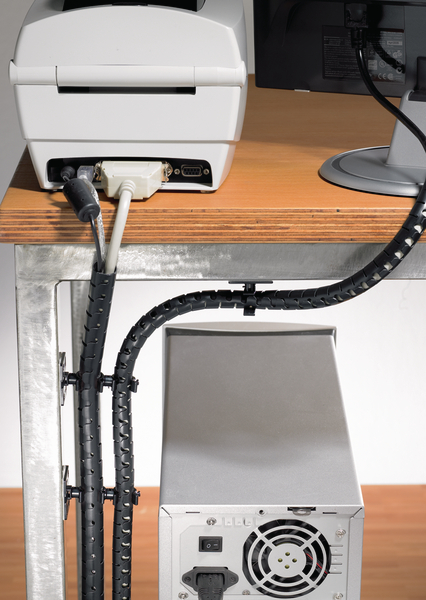

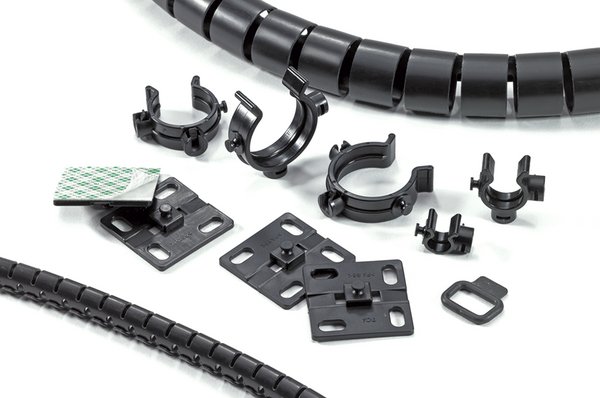

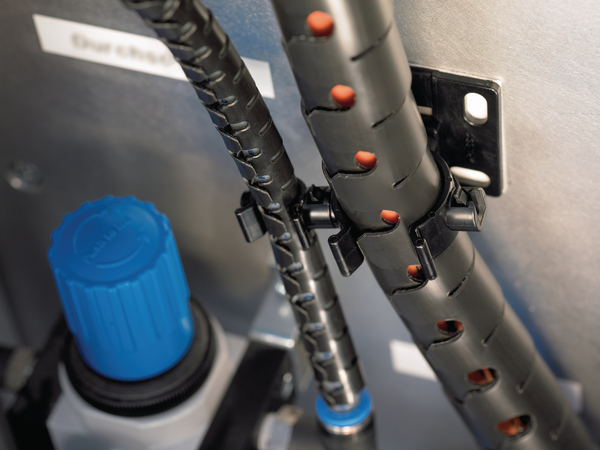

Helawrap clips and mounting plates can be linked to mount and route Helawrap cable covers in wiring cabinets and machines as well as in the iin the office or home.

HWClips is suitable for following markets and industries

Application 2 Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential.
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing clip PA66HIRHS nominal ∅ 16mm black
Fixation Method Plug-in mounting
GLOBAL PART DESCRIPTION HWCLIP16-PA66HIRHS-BK
Pack Cont. 50pcs.
Package Quantity per Bag
Product Family HWClips
Product Group Acessories for retaining Helawrap Open Cable Cover

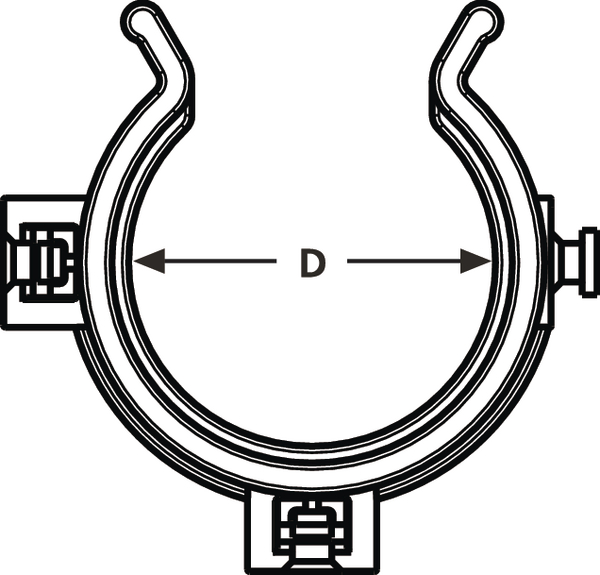

Diameter (D) 15mm
Nominal ∅ 16.0mm
Nominal ∅ (imperial) 5/8"
∅ D (imperial) 0.59"
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Melting Point +284 °F (+140 °C)
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026268606
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00072
Packaging 1 - Weight (kg) 0.133137kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 5.92548kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 163.08kg
Packaging 4 - Width (m) 0.8m
Weight 0.3lbs
Weight 0.108kg
ETIM 5.0 EC001171
ETIM 6.0 EC001171
UNSPSC Key 39131604
