Cable cover 13 mm - 16 mm, PP, silver, 2m + tool
Art.-No. 161-64206 | HWPP16L2-PP-SR Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy applicator tool included
Show more

Request your individual offer now

Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
Application Method Place cables in applicator, then zip through cover sleeve.
Application Tool HAT16
Colour Silver (SR)

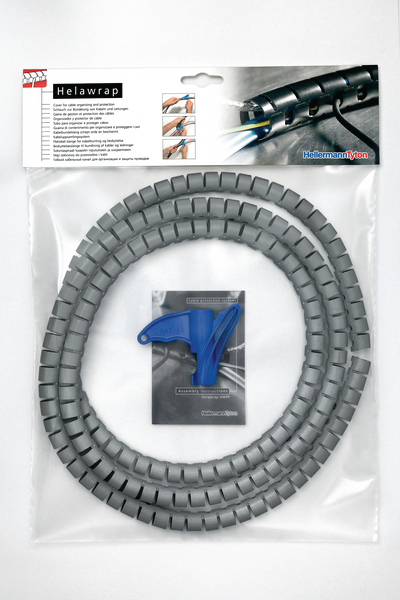

Content 2 m + tool
Local order number 161-64206
Material Polypropylene (PP)
PART DESCRIPTION HWPP16L2-PP-SR
Pack Cont. 2m
Package Content packed in Pack
Product Family Helawrap HWPP
Product Group Helawrap Cable Cover
Short Description Cable cover 13 mm - 16 mm, PP, silver, 2m + tool
Type HWPP16L2
Variant Spiral Binding
Bundle Diameter max (metric) 16mm
Bundle ∅ 13-16mm
Bundle ∅ min. 13mm
Diameter (D) 14.0mm
Length (L) 2m
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Pitch (P) 13mm
Wall (WT) 0.8mm
Wall (WT) (imperial) 0.03"
Weight/Unit 0.11kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +140°C
Melting Point +284 °F (+140 °C)
Operating Temperature -60 °C to +110 °C, intermittent +140 °C
ROHS compliant Yes
Specifications
Specifications ECE R-118-03 Abschnitt 6 / Annex 6
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660183041
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00305
Packaging 1 - Weight (kg) 0.122207kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 8
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0198
Packaging 3 - Weight (kg) 1.302656kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 320
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 73.04kg
Packaging 4 - Width (m) 0.8m
Reel Length 2m
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
