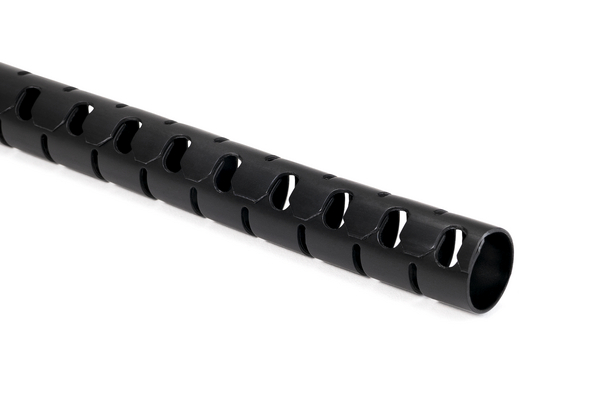

Cable cover 18 mm - 21 mm, PP, black, 25m + tool
Art.-No. 161-64301 | HWPP20-PP-BK Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy applicator tool included
Show more

Request your individual offer now

Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
Application Method Place cables in applicator, then zip through cover sleeve.
Application Tool HAT20
Colour Black (BK)
Content 25m + tool
Local order number 161-64301
Material Polypropylene (PP)
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION HWPP20-PP-BK
Product Family Helawrap HWPP
Product Group Helawrap Cable Cover
Short Description Cable cover 18 mm - 21 mm, PP, black, 25m + tool
Variant Spiral Binding
Bundle Diameter max (metric) 21mm
Bundle ∅ 18-21mm
Bundle ∅ min. 18mm
Diameter (D) 19.0mm
Length (L) 25m
Nominal ∅ 20mm
Nominal ∅ (imperial) 0.81"
Pitch (P) 16.0mm
Pitch (P) (imperial) 0.63"
Wall (WT) 0.95mm
Wall (WT) (imperial) 0.037"
Weight/Unit 0.0488kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +140°C
Melting Point +284 °F (+140 °C)
Nato number 5975-12-405-6961
Operating Temperature -60 °C to +110 °C, intermittent +140 °C
Specifications
Specifications ECE R 118-03 Abschnitt 6
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660178221
Packaging 3 - Height (m) 0.175m
Packaging 3 - Length (m) 0.39m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0266
Packaging 3 - Weight (kg) 2.25kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 900
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 102.0kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
Reel Length (imperial) 82.02ft
EFO Norway block number 049801
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
