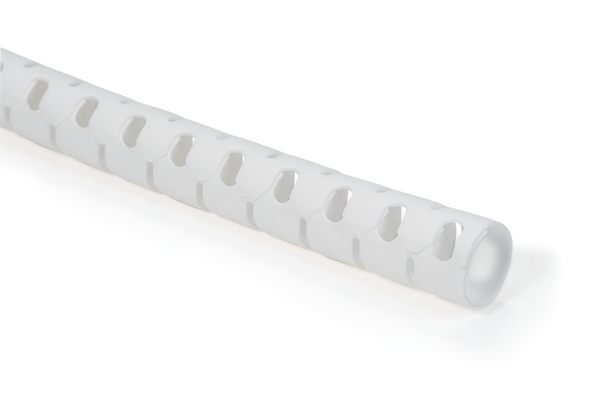

Cable cover 23 mm - 27 mm, PP, white, 25m + tool
Art.-No. 161-64407 | HWPP25-PP-WH Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often

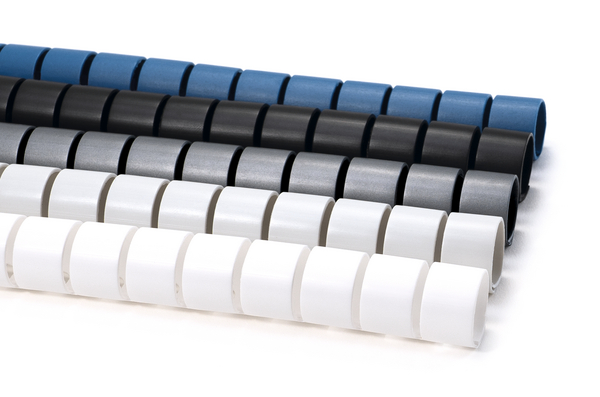

  • Available in several colours and sizes
  • Handy applicator tool included
Show more

Request your individual offer now

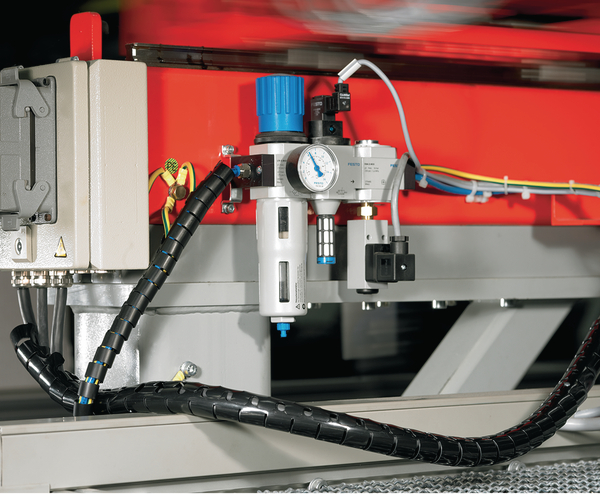

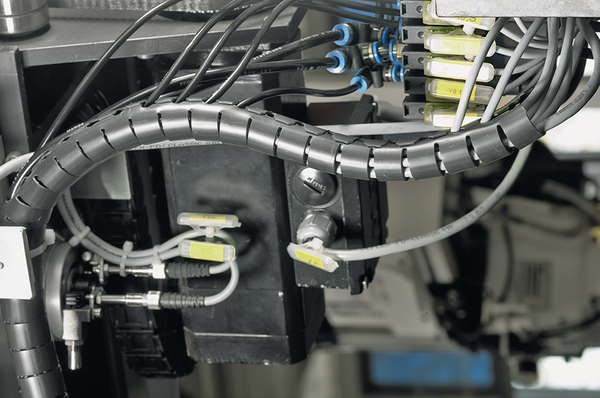

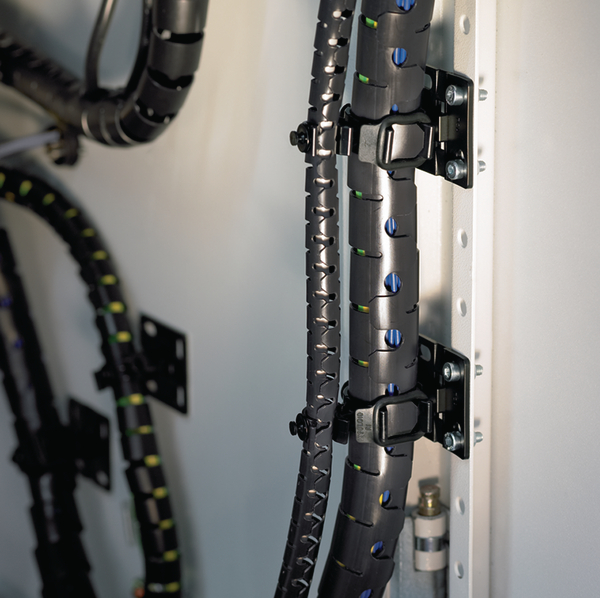

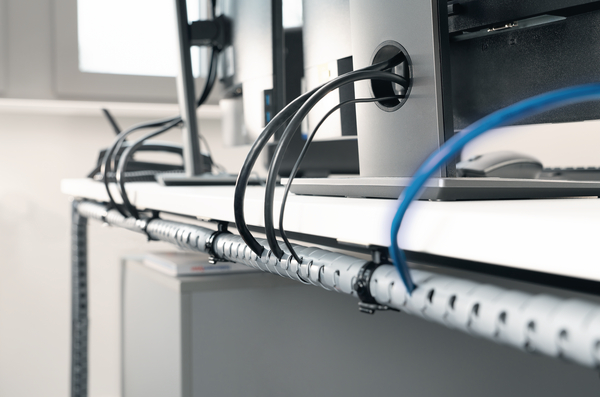

Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.

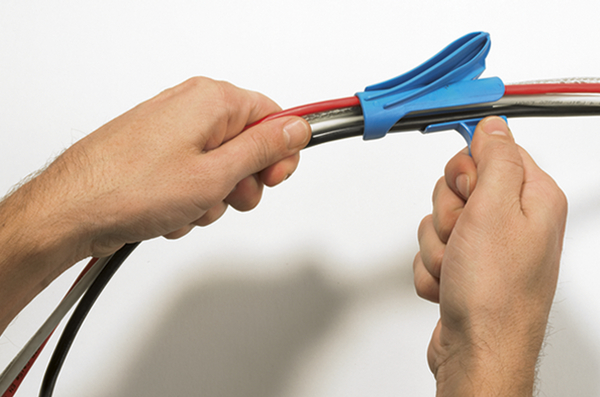

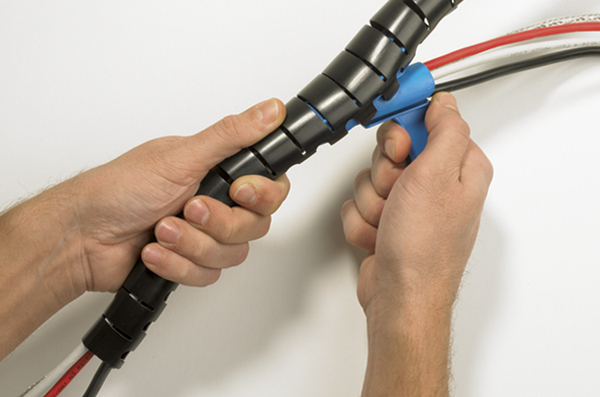

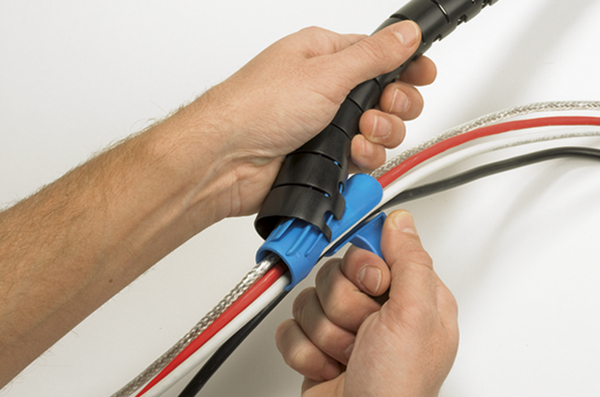

Application Method Place cables in applicator, then zip through cover sleeve.
Colour White (WH)
Content 25m + outil
Local order number 161-64407
Material Polypropylene (PP)
PART DESCRIPTION HWPP25-PP-WH
Pack Cont. 25m
Package Content packed in Bag
Product Family Helawrap HWPP
Product Group Helawrap Cable Cover
Short Description Cable cover 23 mm - 27 mm, PP, white, 25m + tool
Type HWPP25
Variant Spiral Binding
Bundle Diameter max (metric) 27mm
Bundle ∅ 23-27mm
Bundle ∅ min. 23mm
Diameter (D) 24.0mm
Length (L) 25m
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Pitch (P) 20mm
Wall (WT) 1.05mm
Wall (WT) (imperial) 0.041"
Weight/Unit 0.09kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +140°C
Melting Point +284 °F (+140 °C)
Operating Temperature -60 °C to +110 °C, intermittent +140 °C
ROHS compliant Yes
Specifications
Specifications ECE R-118-03 Abschnitt 6 / Annex 6
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660184055
Packaging 1 - Height (m) 0.21m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.03194
Packaging 1 - Weight (kg) 2.32kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.39m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0319
Packaging 3 - Weight (kg) 2.82kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 750
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 105.6kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
