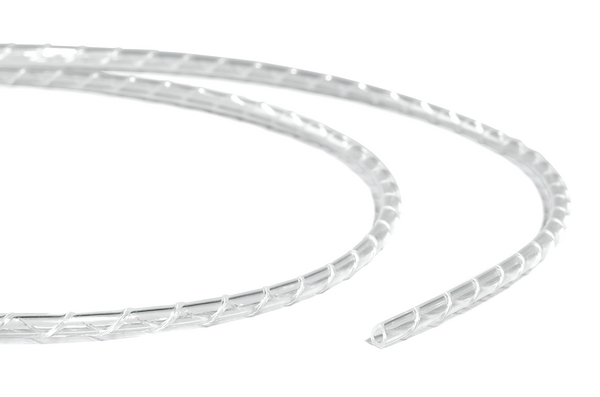

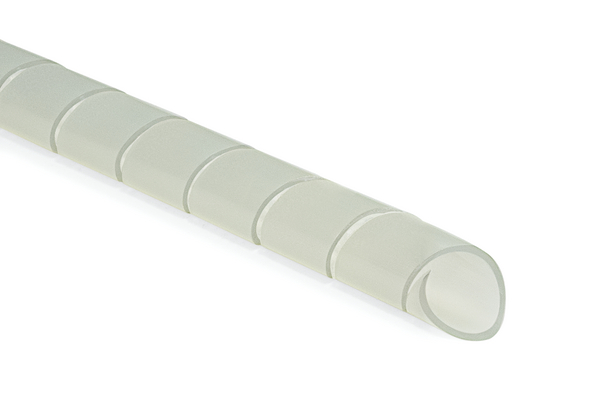

Polyamide Spiral Binding for added strength and protection against abrasion SBPA1.5

SBPA, Article number: 161-42000

Features

  • Organises and protects cables and hoses
  • Very good protection against abrasion
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours

Certifications & Approvals

Application

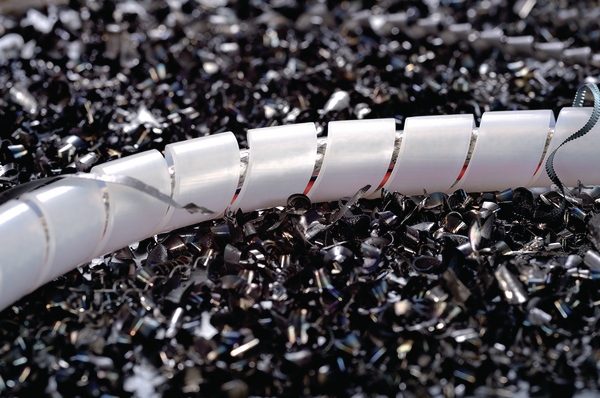

SBPA spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.

SBPA is suitable for following markets and industries

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Spiral binding 1.6 mm - 8 mm, PA6, natural, 30 m
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
GLOBAL PART DESCRIPTION SBPA1.5-PA6-NA
Pack Cont. 30m
Package Quantity per Box
Product Family SBPA
Product Group Polyamide Spiral Binding for added strength and protection against abrasion
Variant Spiral Binding
Bundle ∅ max. 8mm
Bundle ∅ min. 1.6mm
Bundlediamter Range ETIM (Braided Sleeving) 1.6-8
Diameter (D) 1.5mm
Nominal ∅ 1.5mm
Nominal ∅ (imperial) 1/16"
Pitch (P) 6.0mm
Wall (WT) 0.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +130°C
Material Polyamide 6 (PA6)
Operating Temperature - °C -60 °C to +95 °C
Specifications
EAN / GTIN 5022660549021
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.195m
Packaging 1 - Qty 30
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00114
Packaging 1 - Weight (kg) 0.168kg
Packaging 1 - Width (m) 0.195m
Packaging 2 - Height (m) 0.037m
Packaging 2 - Length (m) 0.205m
Packaging 2 - Qty 30
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0015
Packaging 2 - Weight (kg) 0.22kg
Packaging 2 - Width (m) 0.195m
Reel Length 30m
Weight 0.168kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
