Polyamide Spiral Binding for added strength and protection against abrasion : SBPA9

Spiral binding 10 mm - 100 mm, PA6, natural, 30 m, Article number: 161-42200

Features

  • Organises and protects cables and hoses
  • Very good protection against abrasion
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours

Certifications & Approvals

Application

SBPA spiral binding is used for cable harnesses in the automobile industry and for many demanding industrial applications.

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Natural (NA)
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
Pack Cont. 30m
Package Quantity per Box
PART DESCRIPTION SBPA9-PA6-NA
Product Family SBPA
Product Group Polyamide Spiral Binding for added strength and protection against abrasion
Short Description Spiral binding 10 mm - 100 mm, PA6, natural, 30 m
Variant Spiral Binding
Bundle ∅ max. 100mm
Bundle ∅ min. 10mm
Diameter (D) 9mm
Nominal ∅ 9mm
Nominal ∅ (imperial) 0.38"

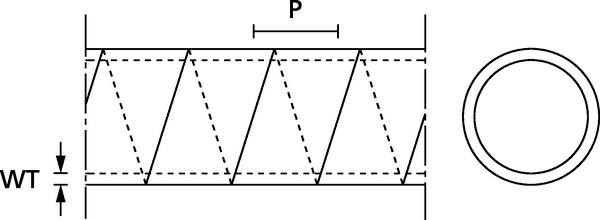

Pitch (P) 12.5mm
Wall (WT) 1.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +130°C
Material Polyamide 6 (PA6)
Operating Temperature - °C -60 °C to +95 °C
Specifications
EAN / GTIN 5022660549045
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 30
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.01443
Packaging 1 - Weight (kg) 1.0894kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.13m
Packaging 3 - Length (m) 0.37m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0144
Packaging 3 - Weight (kg) 1.589kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.184m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1920
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.137
Packaging 4 - Weight (kg) 122.722kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
Weight 1.0194kg
ETIM 6.0 EC002604
ETIM 7.0 Key EC002604
