Spiral wrap, nom⌀4mm, ⌀5-20mm, -60 °C to +80 °C, intermittent +120 °C, black, 2000m


Art.-No. 161-43102

| SBPEFR4-PE-FR-BK

 |

Copied

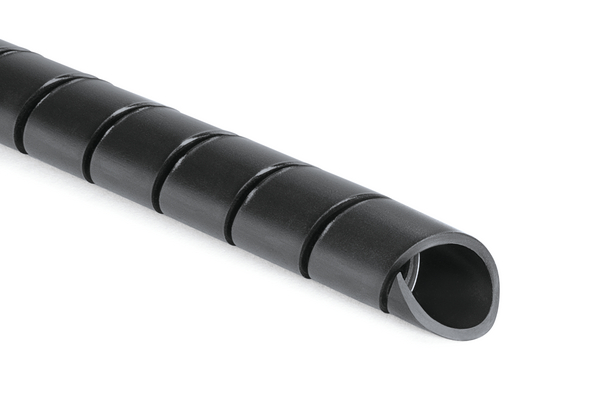

SBPEFR - Black flame retardant PE Spiral Wrap.
Spiral binding

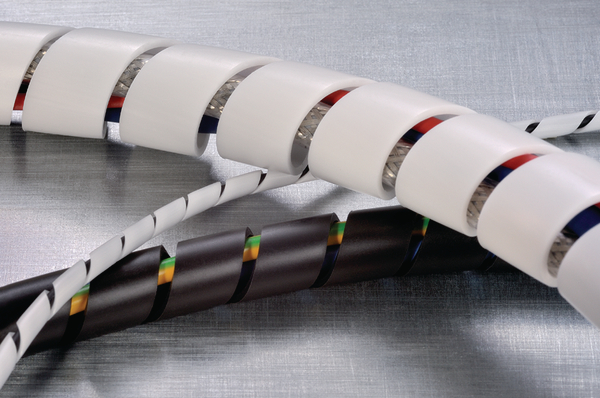

Spiral binding SBPEFR is available in a wide range of diameters and in colours black and white.

    • Organises and protects cables and hoses
    • Self-extinguishing according to UL94 V2
    • Suitable for retro-fitting
    • Cables branch out at any point
    • Wide range of diameters and colours
    Package size
    Add to watchlist
    Request quote
    Downloads
    Application The flame-retardant properties of SBPEFR make it suitable for applications in the automobile and electrical industries, where enhanced fire protection is needed.
    Colour Black (BK)
    Local order number 161-43102
    Material Polyethylene (PEFR), Flame retardant
    PART DESCRIPTION SBPEFR4-PE-FR-BK
    Package Content 2000m
    Package Content packed in Box
    Product Family SBPEFR
    Product Group Polyethylene Spiral Binding for enhanced flame protection
    Type SBPEFR4
    Variant Spiral Binding
    Bundle ⌀ 5-20mm
    Bundle ⌀ max. 20mm
    Bundle ⌀ min. 5mm

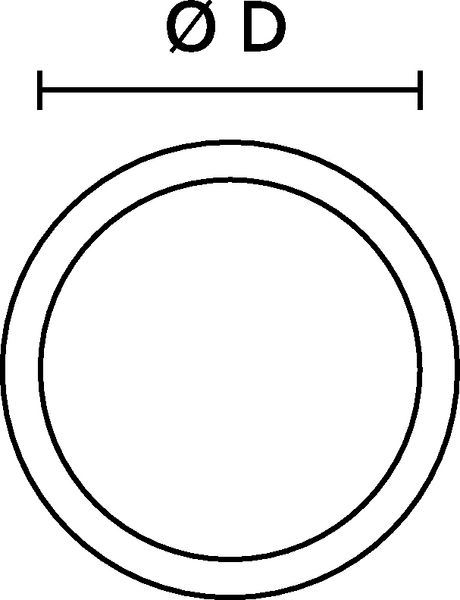

    Diameter (D) 4mm
    Nominal ⌀ 4mm
    Nominal ⌀ (imperial) 0.19"

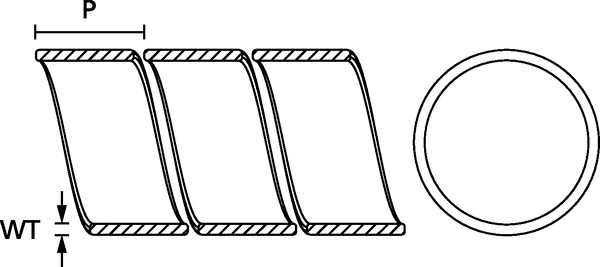

    Pitch (P) 7.8mm
    Wall (WT) 1.0mm
    Flammability UL 94 V2, FMVSS 302, Type B
    Halogen-free No
    Intermittent Operating Temperature +120°C
    Operating Temperature -60 °C to +80 °C, intermittent +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026284897
    Packaging 1 - Weight (kg) 2.1kg
    Reel Length 30m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
